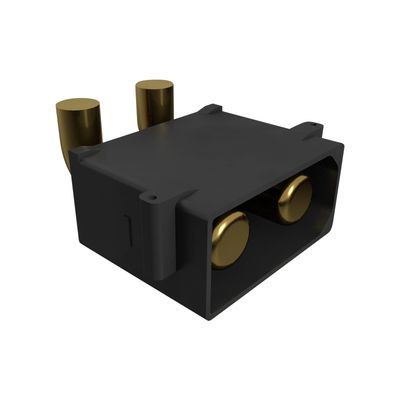

QS8 90°

---

Product:

Gender: Female/Male

Conductor Material: Brass

Insulation Material: PA66

Plating: Gold (Au)

Coating Thickness: 1.5 μ

Color: Black

Flammability Rating: UL94-V0

Wire Range: 8-12AWG

Weight: 55g

Applications: Drones, electric vehicles, electric motorcycles, RC (remote control), energy storage, controllers, lithium batteries, etc.

Electrical Properties

Rated Current: 110A

Max Current: 180A

Rated Voltage: 500V DC

Contact Resistance: 0.5mΩ Max

Insulation Resistance: 500mΩ Min

Operating Temperature: -20°C~120°C

Insertion Force: During the service life, the insertion and extraction force of the discharge port is between 7N-30N

Mechanical Behavior

Rockwell hardness: >119R

Tensile breaking strength: >700kg/cm²

Plug life: 1000times

Shear strength: >790kg/cm²
