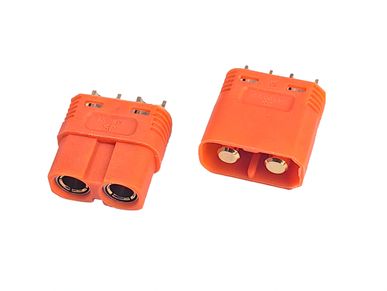

XT90-V2

---

Product:

Contact material: Brass

Plated: Nickel

Insulation: PA66

Rrand: Resumption of Trading

Hardness: 80

Glass Fiber Ratio: 15%-25%

Electrical Performance

Instantaneous current: 60A Max

Rated Current: 50A

Rated Voltage: DC 500V

Contact Resistance: 5mΩ MAX

Mechanical Properties

Recommended Times: 500

Working Temperature: -20°C-130°C

Withstand Voltage: AC1000--50

Accreditation Standards

REACH: 1907/2006/EC 1.

ROHS DIRECTIVE 2015/863/EU

IPC-A-610 CLASS 2 OR BETTER

IPC-A-620 CLASS 2 OR BETTER
