Pre-Charge Resistor Value Matching Guide for QS Antispark Connectors Based on Battery Capacity

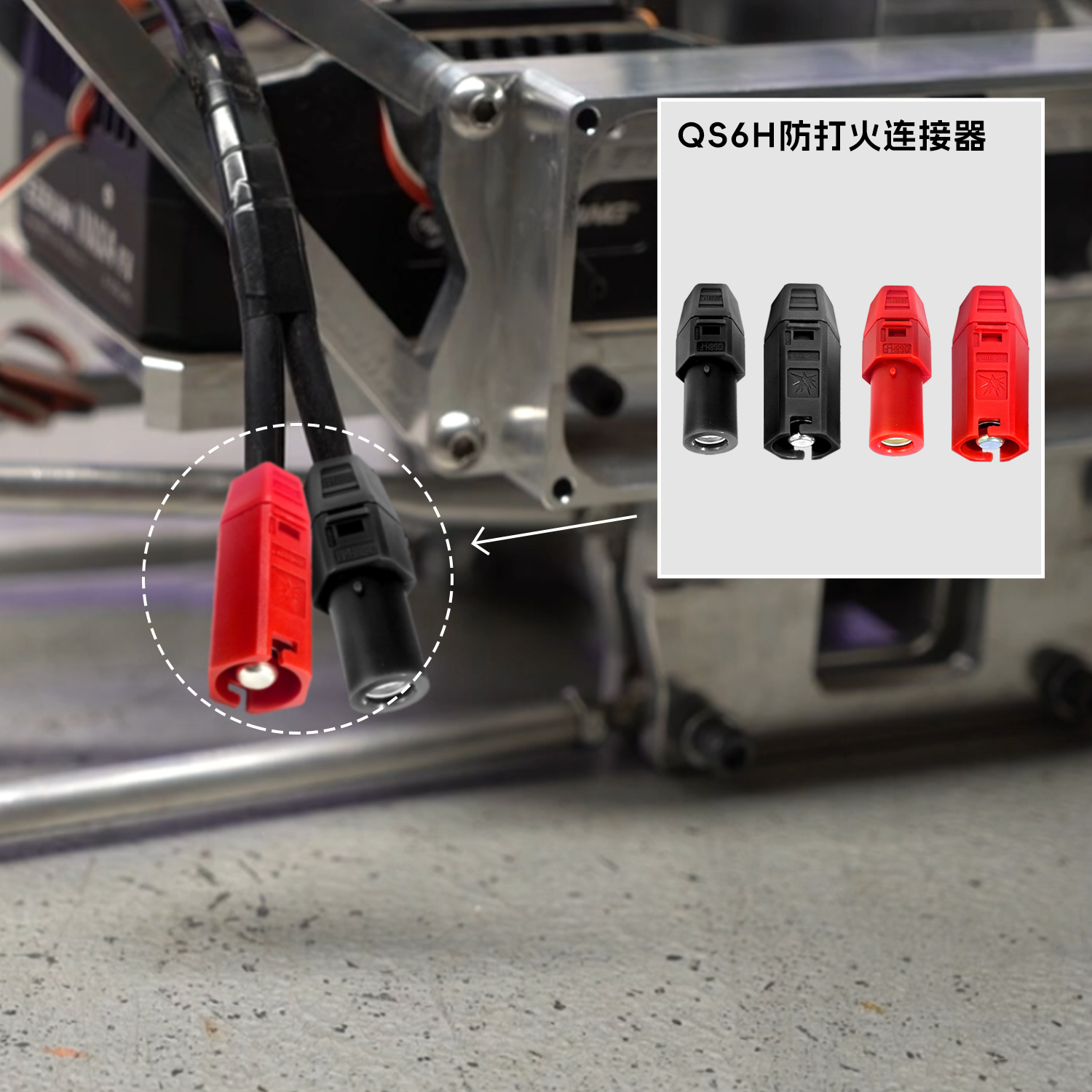

The built-in pre-charge resistor is the core component that enables QS Antispark connectors to eliminate high-current plug arcing fundamentally. However, mismatched resistance value will cause two extreme problems: too large resistance leads to slow voltage equalization and incomplete pre-charging, still generating tiny sparks; too small resistance causes excessive instantaneous pre-charge current, resistor overheating and burnout risk. Most engineers lack a unified matching standard between battery capacity and resistor parameters, which reduces the anti-spark effect in actual projects.

The working logic of the pre-charge circuit is simple to understand. Before the main large-current contact is closed, the small pre-charge contact connects the battery terminal and the load-side capacitor first. The resistor consumes inrush current and balances the voltage difference on both sides of the loop. The larger the battery pack capacity, the more residual electric energy stored in system capacitors, which requires lower resistance to finish voltage equalization within 0.5–1 second.

YOUWEI sorts out the mature matching database accumulated from hundreds of energy storage and EV projects for QS series pre-charge resistance configuration:

1. 1.Battery pack ≤50Ah small AGV, handheld equipment, low-power forklift: Match 15Ω ~20Ω pre-charge resistor
2. 2.50Ah – 150Ah standard logistics AGV, small charging cabinet, portable energy storage: Match 10Ω ~12Ω resistor
3. 3.150Ah – 300Ah large battery swap station, commercial charging pile, medium energy storage module: Match 6Ω ~8Ω resistor
4. 4.≥300Ah large stationary energy storage container, electric ship main power battery: Match 3Ω ~5Ω high-power resistor

5.


Meanwhile, we set power derating rules for special environments: For high-temperature sealed battery compartments above 60℃ ambient temperature, we increase resistor power rating by 50% to avoid thermal aging. For low-temperature -40℃ outdoor equipment, we use low-temperature drift precision resistors to guarantee stable resistance value in cold climate.

Many competitors use fixed single resistor for all current specifications to cut costs, resulting in poor adaptability for different battery capacities. All QS Antispark connectors support personalized pre-charge resistance customization without changing the overall shell size and mounting dimension, which will not affect customers’ existing structural design of battery packs and equipment housings.

If you cannot confirm the correct resistance parameter for your lithium battery system, send us battery voltage, capacity, maximum discharge current and working temperature range, our technical engineers will feed back the optimal QS configuration scheme within 24 hours.
