Humid Environment Corrosion Test: High-current anti-spark connector aging failure summary

2. 1. Corrosion Failure Hazards in Humid Working Scenarios

3. Electric vessels, coastal energy storage stations, outdoor DC charging piles and warehouse humid-environment AGVs expose connectors to high humidity, salt fog and condensed water for a long time. Standard connectors suffer severe corrosion aging: Moisture invades terminal contact surface, forms oxidation corrosion layer, contact resistance surges and triggers overheating; Corrosion gap generates electrolytic spark under voltage difference, ablates terminals during daily power on; Plastic shell sealing aging caused by long-term humidity leads to internal circuit short circuit risk, directly threatening equipment operation safety. Many marine clients from Southeast Asia report connector failure rate over 40% within one year without anti-corrosion customization.

4. 2. Corrosion Aging Failure Path Analysis in Humid Environment
   Poor basic sealing structure of ordinary connectors only reaches IP54 grade, condensed water and salt fog penetrate into the mating cavity under long-term high humidity; Nickel-plated terminals lack anti-corrosion barrier, chloride ions in salt fog rapidly corrode metal contact surface to form insulating rust layer; No internal drainage design, accumulated water inside the connector forms electrolytic cell between positive and negative terminals, producing persistent micro-arc corrosion during power supply standby state.

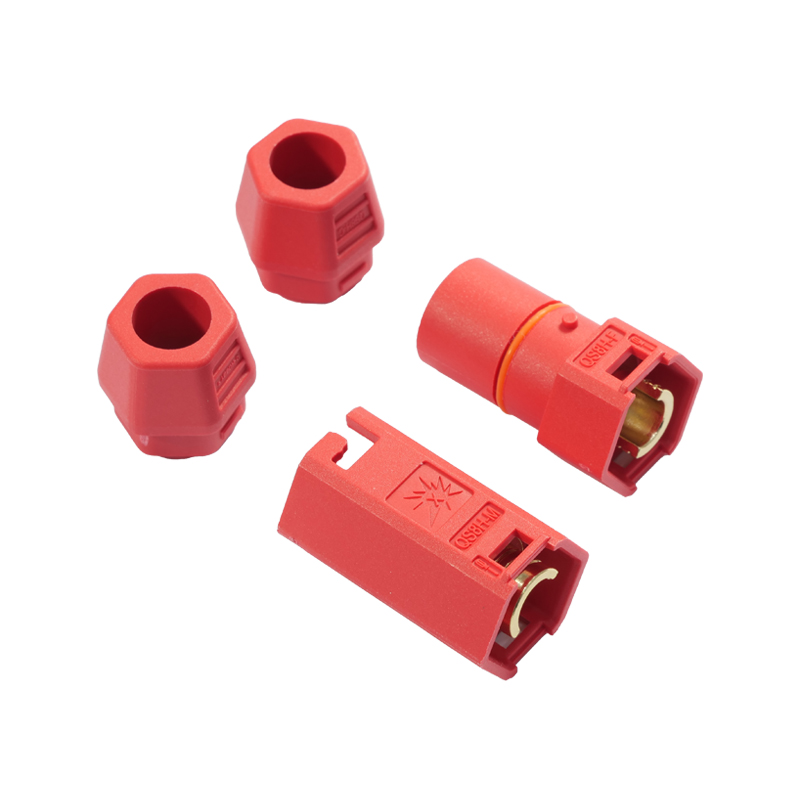

5. 3. Custom Anti-Corrosion & Sealing Optimization of QS Antispark Connector
   YOUWEI launches full set of humid environment customized transformation options for QS Antispark connector, passing 500-hour salt spray aging test standard:

6. 3.1 Custom High IP Sealing Structure Upgrade

7. Support customized double-layer silicone sealing ring, fully enclosed mating cavity, standard IP67, optional IP68 deep waterproof customization for marine equipment. Prevents condensed water and salt fog from entering internal terminal area.

8. 3.2 Anti-Corrosion Terminal Plating Customization

9. Three optional plating schemes for humid scenarios: thick silver plating, hard gold plating, tin-silver alloy plating. The dense precious metal layer isolates salt fog and moisture, effectively suppressing rust layer generation on contact surface.

10. 3.3 Custom Built-in Drainage Groove Design

11. We add tiny drainage channels at the bottom of female connector housing as customized demand, discharging accidental condensed water out of the cavity to avoid long-term water accumulation electrolytic corrosion. Meanwhile, the built-in pre-charge anti-spark module avoids arc erosion induced by corroded contact gaps.

12. 4. Salt Fog & Humidity Accelerated Aging Test Results

13. Test environment: 500h continuous salt spray + 85%RH high humidity cycling test

1. Terminal surface corrosion area: Standard Nickel-Plated IP54 Connector reaches 78%, while Custom IP67 Gold-Plated QS Antispark Connector is less than 1%.
2. Contact resistance growth multiple: The standard nickel-plated IP54 connector rises to 3.6 times the original value, and the customized IP67 gold-plated QS anti-spark connector only increases by 0.13 times.
3. Visible electrolytic micro-arc during standby: Electrolytic micro-arcs appear every day on ordinary nickel-plated connectors, while the customized QS connector has zero micro-arc phenomenon.
4. Plastic shell sealing aging degree: The sealing ring of standard connectors cracks after testing; the customized product retains 92% of its original sealing elasticity.


5. Matching Humid Environment Projects

Offshore/river electric ships, coastal wind energy storage systems, outdoor rainproof charging piles, cold storage warehouse AGVs, tropical rainforest area mobile energy storage power stations.

6. Conclusion & Inquiry Guide

Long-term humid and salt fog environment causes multi-stage corrosion aging failure of traditional high-current connectors. Custom sealed, anti-corrosion plating QS Antispark connector blocks moisture invasion and electrolytic arc generation from structure and material, greatly extending service life in coastal and marine projects. Our engineers can match waterproof grade and plating scheme according to your local humidity and salt fog concentration data. If you have any request please contact with my tech team http://www.youweic.com
