Overheating Failure Research: High-current anti-spark connector long-load damage mechanism

1. Universal Overheating Failure Phenomenon of Traditional High-Current Connectors

Many new energy equipment manufacturers encounter the same after-sales problem: connectors work normally within 1 hour of startup, but temperature rises sharply after 4–6 hours continuous full load, followed by plastic shell melting, terminal oxidation and circuit breakdown.For energy storage systems running 24/7, AGVs with 12-hour daily operation and all-day working electric forklifts, long-term steady overheating is the top cause of connector scrapping. Our after-sales statistics show over 70% of connector failure cases originate from continuous load overheating induced arc and ablation.

2. Three Core Mechanisms of Long-Load Overheating Damage

2.1 Contact Resistance Accumulated Heat Generation

Ordinary connectors only use thin nickel plating on terminals. After long-time high current passing, nickel layer oxidizes, contact resistance gradually increases. Heat generation formula Q=I²Rt means heat rises exponentially with resistance growth, forming a vicious cycle of higher temperature → larger resistance → more heat.

2.2 No Heat Dissipation Optimized Internal Structure

Standard connector housing is fully sealed without reserved heat conduction channels. Heat accumulated inside cannot be discharged, internal ambient temperature keeps rising, accelerating plating layer aging and plastic shell thermal deformation.

2.3 Thermal Expansion Widens Terminal Contact Gap

Continuous high temperature causes copper terminal thermal expansion and deformation. The mating gap between male and female terminals expands, local contact area reduces, current crowding produces high-temperature hot spots, and tiny static sparks appear in the gap to erode terminals further.

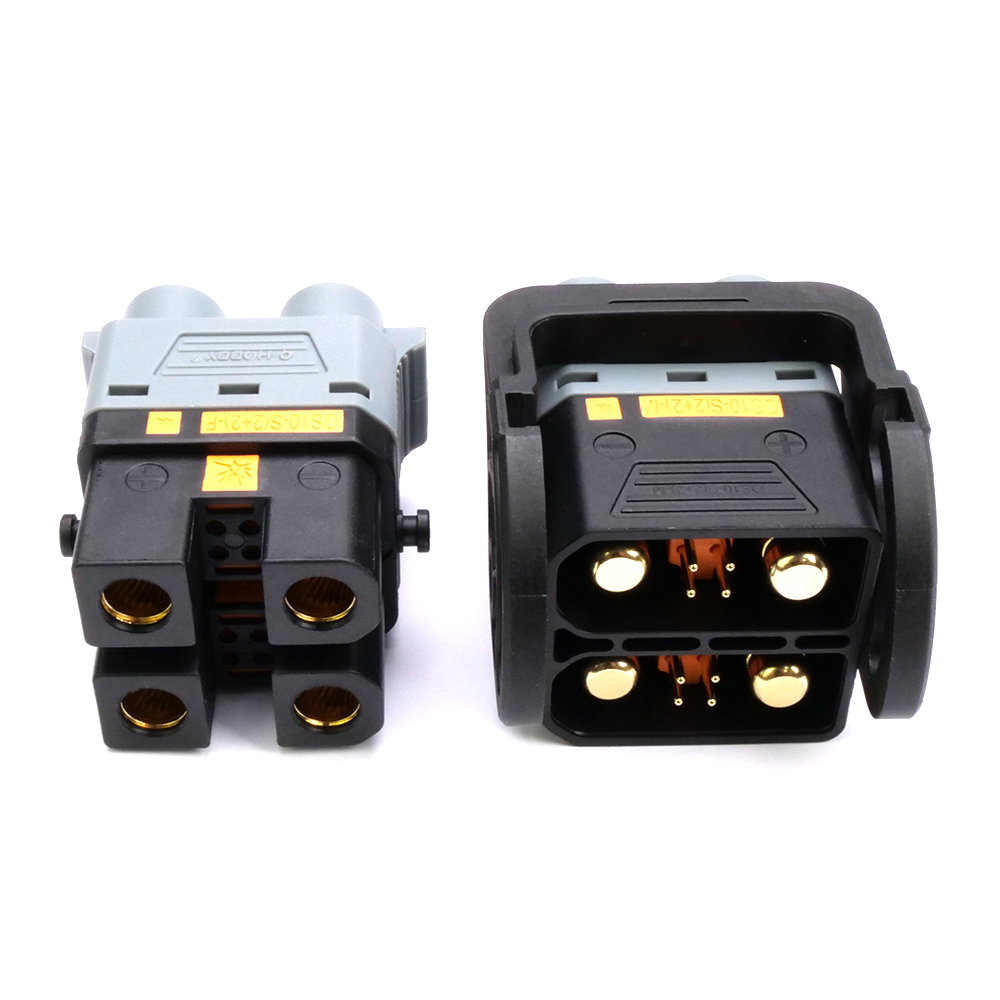

3. QS Antispark Connector Targeted Design to Block Overheating Damage Chain

YOUWEI QS Antispark series breaks the overheating vicious cycle from material, structure and anti-spark triple dimensions:

1. Custom High-Conductivity Terminal Plating: Standard silver plating with optional thick gold plating customization. Silver/gold anti-oxidation performance suppresses contact resistance growth under long load. After 1000 hours 400A continuous test, resistance rise is only 12%, compared to 210% of nickel-plated terminals.
2. Built-in Heat Dissipation Channel Customizable Housing: We can open customized side heat dissipation grooves on the plastic shell according to customer heat dissipation demands, forming air convection inside the connector to take away accumulated heat, internal temperature drop by over 30°C under full load.
3. Pre-charge Anti-spark Eliminates Gap Arc: Even slight contact gap generated by thermal expansion will produce static spark in traditional connectors; QS built-in pre-charge module balances voltage difference, cutting off arc source fundamentally and avoiding secondary ablation caused by high-temperature electric spark.

4. Long Continuous Load Benchmark Test Data

Test Condition: 400A constant current, 8 hours daily cycle, total test duration of 1000 hours

1. Terminal contact resistance increment: Ordinary Nickel-Plated Connector reaches 214%; Silver-Plated QS Antispark Connector only reaches 11.7%
2. Max internal shell temperature: Ordinary Nickel-Plated Connector hits 136°C; Silver-Plated QS Antispark Connector hits 98°C
3. Terminal surface ablation degree: Ordinary Nickel-Plated Connector suffers severe pitting corrosion; Silver-Plated QS Antispark Connector remains smooth without any oxidation spots
4. Remaining service life after test: Ordinary Nickel-Plated Connector retains only 12% of its original service life; Silver-Plated QS Antispark Connector retains 89% of its original service life

5. High-Duration Load Application Matching

24-hour running grid energy storage cabinets, factory all-shift AGVs, port continuous-operation electric forklifts, overnight charging piles, long-distance electric passenger ships.

6. Conclusion & Inquiry Guide

Long-load overheating damage is a chain reaction composed of resistance rise, heat accumulation and thermal gap arc. QS Antispark connector solves each link through plating customization, heat dissipation structural adjustment and integrated anti-spark function. Our technical team can calculate targeted terminal plating thickness and heat dissipation structure scheme based on your equipment continuous working hours and rated current.If you have any request please contact my tech team via website: http://www.youweic.com
