DS51150-12V 150kg RC Digital Servo

DS51150-12V High Torque Digital Servo

Industrial Grade | For Robots/Arms/Heavy RC

Motor: Coreless/Brushless DC Motor (High Efficiency)

Gear: All-Metal Steel Alloy (Wear-Resistant)

Temp: -20℃~+60℃ (Industrial: -40℃~+85℃)

Torque: 150kg·cm @ 12.6V, 0.19s/60° Speed

Voltage: 9~12.6V Wide Industrial Input

Control: PWM Signal, 180°/270° Adjustable Angle

Certifications: CE, RoHS, REACH, ISO 9001

Customizable: Protocol/Connector/Environmental Version

1. Basic Specifications

   Product Name: DS51150-12V High Torque Digital Servo

   Conductor/Control Signal: Standard PWM Signal (20ms Period, 500~2500μs Pulse Width)

   Motor Type: Coreless DC Motor / Brushless DC Motor (Optional, High Efficiency & Low Noise)

   Gear Material: All-Metal Gears (Steel Alloy, High Hardness & Wear-Resistant)

   Rated Voltage: 9~12.6V (Wide Industrial Grade Input)

   Working Temperature Range: -20℃ ~ +60℃ (Standard); -40℃ ~ +85℃ (Industrial High/Low Temp Version Optional)

   Torque Output: 150kg·cm @ 12.6V (Stall Torque, 0.05s/60° No-Load Speed)

   Control Angle: 180° / 270° (Adjustable, Custom Angle Available)

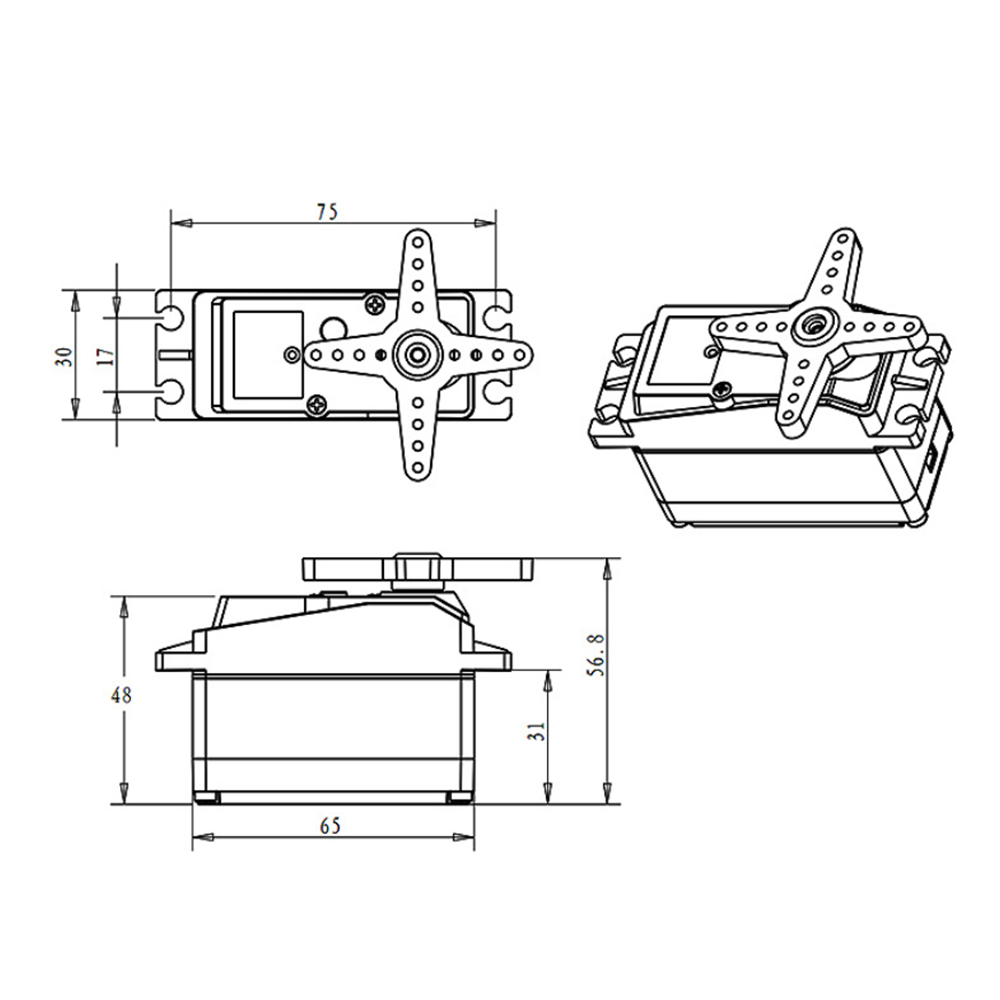

   Nominal Size: Standard Industrial Servo Form Factor (Customizable for Special Mounts)

   Connector Type: Standard JST Connector / Custom Industrial Plug (Optional)
2.

3. Key Performance Parameters

   Torque Stability: ±5% Torque Consistency (Under Continuous Load, No Jitter or Drift)

   Response Speed: 0.19sec/60° No-Load Speed, Fast Dynamic Response for High-Speed Motion

   Environmental Resistance: Anti-Shock, Anti-Vibration, Dust-Resistant, Water-Resistant (IP67 Optional), Adapt to Harsh Industrial Environments

   Current-Carrying Capacity: Peak 10A / Continuous 5A (At 12.6V, Stable Power Transmission Under Load)

   Insulation Resistance: ≥100MΩ (Between Motor & Housing, Safe for Industrial High-Voltage Environments)

   Protection Grade: Over-Current Protection, Over-Temperature Protection, Stall Protection (Prevent Motor Burnout)

   Certifications: CE, RoHS, REACH, ISO 9001 (Compliant with EU/US Import Standards)
4.

5. Structural Features

   All-Metal Housing: CNC Machined Aluminum Alloy Housing, High Rigidity & Heat Dissipation

   Dual Bearing Design: Front & Rear Double Ball Bearings, Ultra-Low Friction, Not Easy to Wear Under High Load

   High-Precision Potentiometer: 16-bit High-Resolution Feedback, Precise Position Control, No Dead Zone

   Optional Encoder: Magnetic Encoder (16/20-bit, High Precision & Anti-Interference) for Closed-Loop Control

   Shielded PCB: Anti-Electromagnetic Interference (EMI), Prevent Signal Disturbance in Industrial Scenarios
6.

7. Application Scope

   Widely Used for Industrial Robots, Robotic Arms, Large RC Vehicles (1/5~1/8 Scale), Automated Production Lines, CNC Machinery, Packaging Equipment, Marine Automation, Automotive Manufacturing Equipment, and Other Industrial Scenarios Requiring High Torque, High Precision, and Stable Motion Control.
8.

9. Customization Options

   Custom Torque & Speed Tuning (Firmware Calibration for Specific Applications)

   Custom Control Protocol (PWM / UART / I2C / CAN Bus, Optional)

   Custom Housing & Mounting Bracket (Special Sizes for Custom Equipment)

   Custom Environmental Protection (IP67 Waterproof / High-Temp Resistant / Low-Temp Resistant Versions)

   Custom Cable Length & Connector Type (Industrial Plugs / Waterproof Connectors Available)
