DS3240 Digital RC Servo
Industrial Grade | For RC Cars/Robots/Automation
Torque: 36-45kg·cm (5V-6.8V)
Speed: 0.17sec/60° @6.8V
Waterproof: IP66 (Dust & Water Resistant)
Material: High-Strength Metal Gears + Engineering Plastic Shell
Voltage: 4.8V~6.8V
Temp: -25℃~+70℃
Control: 500~2500µs PWM Signal, 180°/270° Adjustable
Certifications: CE, RoHS, FCC
Customizable: Rotation Angle/Control Mode/Logo/Packaging
DS3240 Digital RC Servo Specifications
Industrial Grade High Torque Waterproof Servo, Compliant with International Standards, Suitable for RC Cars, Robots, Industrial Projects & Heavy-Duty Models
1. Basic Specifications
Product Name: DS3240 Digital Servo / RC Servo / High Torque Waterproof Servo
Conductor/Internal Material: High-Precision Metal Gears (342:1 Gear Ratio, High Hardness Alloy Steel)
Insulation/Shell Material: High-Strength Engineering Plastic (Waterproof, Impact-Resistant, Anti-Corrosion)
Rated Voltage: 4.8V~6.8V (Standard RC Servo Voltage, Optional High-Voltage Version)
Working Temperature Range: -25℃ ~ +70℃ (Standard Industrial Grade, Stable Performance in Extreme Conditions)
Torque (kg·cm): 36kg·cm @5V, 40kg·cm @6V, 45kg·cm @6.8V (High Torque Output for Heavy Loads)
Speed (sec/60°): 0.17 sec/60° @6.8V (No-Load, Fast Response for Dynamic Control)
Rotation Angle: 180° / 270° (Dual Angle Adjustable, Customizable for Different Applications)
Control Signal: 500~2500µs Standard PWM Signal (Compatible with All RC Controllers)
Weight: 60g (Lightweight Design, Easy Installation in Limited Space)

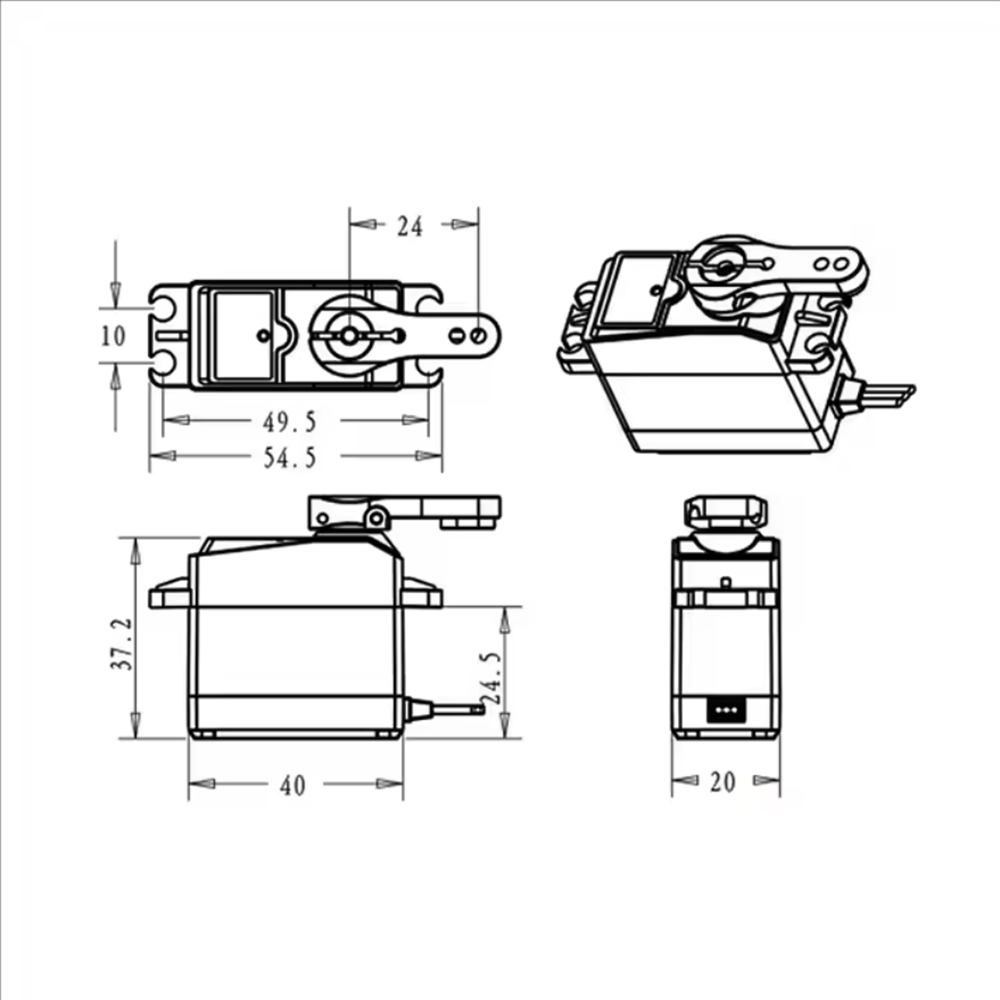

Dimensions: 40.5×20.2×38.5mm (Standard Servo Size, Universal Mounting Holes)
2. Key Performance Parameters
Waterproof Rating: IP66 (Test Standard: IEC 60529, Dust-Tight & Water-Resistant, Adapt to Outdoor/Harsh Environments)
Wear Resistance: High-Hardness Metal Gears + Double Bearings, Anti-Abrasion, Anti-Scratch, Long Service Life
Environmental Resistance: Anti-Vibration, Anti-Shock, Anti-Humidity, Anti-Corrosion, Adapt to Harsh Industrial & RC Scenarios
Current-Carrying Capacity: 0.5A~2A (Depends on Load, Low Current Consumption, Stable Power Transmission)
Insulation Resistance: ≥100MΩ (20℃), Excellent Insulation Performance, Safe for Continuous Use
Certifications: CE, RoHS, FCC, ISO 9001 (Compliant with EU/US Import Standards)
3. Structural Features
High-Precision Metal Gear Set: 342 Fine-Tooth Design, Ultra-High Torque, Not Easy to Strip Under Heavy Loads
Double Bearing Support: Smooth Operation, Reduce Friction, Extend Service Life
Waterproof Sealing Structure: Multi-Layer Sealing, Prevent Water & Dust Ingress, Reliable in Wet Conditions
High-Torque Motor: High-Efficiency DC Motor, Fast Response, Strong Power Output for Quick Movements
Optional Control Modes: Standard PWM / Digital Signal, Anti-Interference, Stable Control Signal
4. Application Scope
Widely Used for RC Cars (1/8, 1/10 Scale), Industrial Robots, RC Crawlers, RC Trucks, Agricultural Automation Equipment, Marine RC Models, Heavy-Duty Robotic Arms,
and Other Scenarios Requiring High Torque, Waterproofing, and Stable Control.
5. Customization Options
Custom Torque/Speed Versions for Specific Applications
Custom Rotation Angle (180°/270°/360° Continuous)
Custom Control Interface (PWM/Serial Bus/SBUS)
Custom Waterproof Rating (IP66/IP67 Optional)
Custom Logo, Packaging & Connector Types
