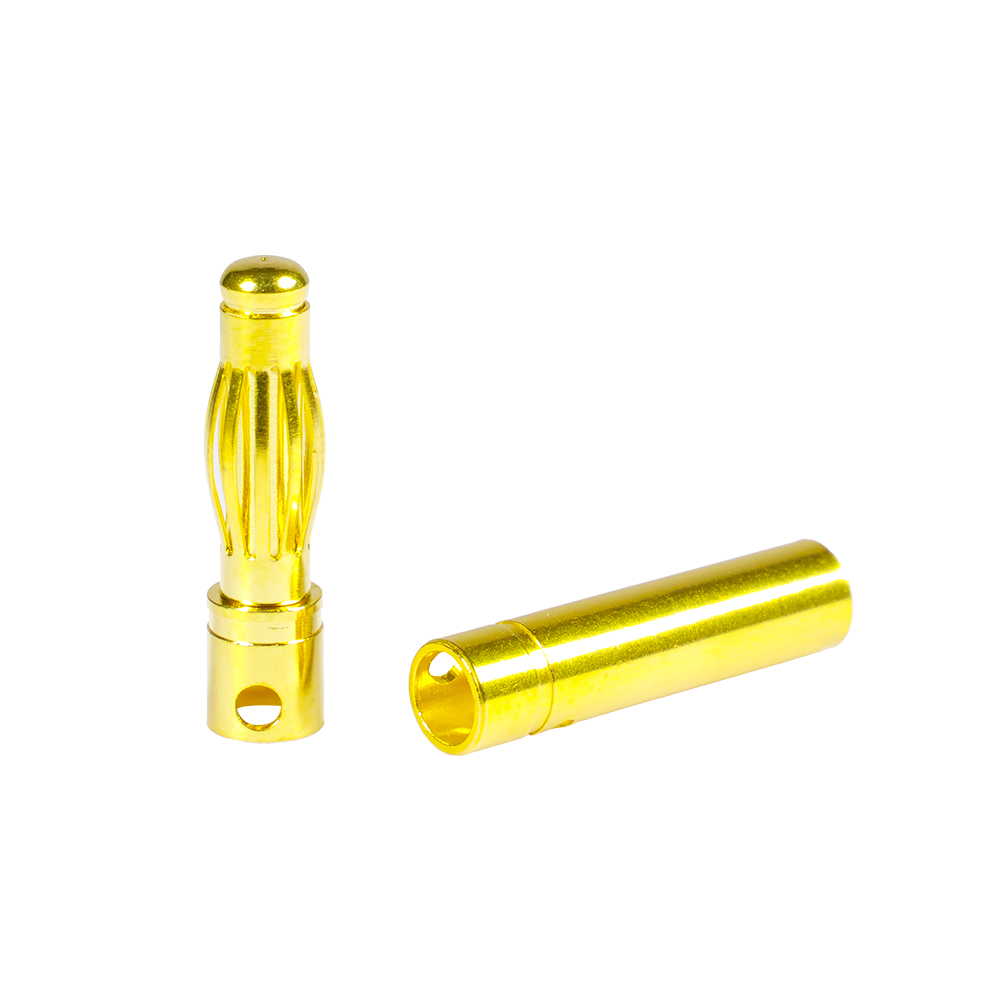

4.0mm Banana Plug Connector
Gold Plated Kit | For RC Lipo / Aircraft Motor / ESC
Material: Solid Brass Full Gold-Plated
Rated: 55A Current / 500V Voltage
Matching Tubing: 4.5~6mm Heat Shrink Tube
Size: Standard 4.0mm Specification
Color: Gold Plated
Certifications: Compliant with standard industrial norms
Customizable: OEM ODM / Packing Customization
4.0mm Banana Plug Connector Specifications
Gold Plated Male Female Banana Terminal Kit, Industrial Grade for RC Lipo Battery, ESC, Aircraft Model & Motor Charging Connection
1. Basic Specifications
Product Name: 4.0mm Banana Plug / Gold Plated Banana Connector / RC Model Terminal Plug
Conductor Material: Solid Brass, Full Gold Plated Plating
Insulation/Shell Material: Solid Brass with Golden Plated Surface
Rated Voltage: 500V (Industrial model rated voltage)
Rated Current: 55A continuous working current
Matching Heat Shrink Tubing Size: 4.5~6mm
Dimension Size: Standard 4.0mm plug outer specification
Color: Pure Gold Plated Appearance
Set Configuration: Male + Female matched kit
2. Key Performance Parameters
Current Load Resistance: Stable 55A rated current carrying capacity, low contact resistance for steady power transmission
Voltage Withstand: 500V rated voltage insulation property, safe for RC battery high current charging use
Wear Resistance: Thick gold plated brass body, anti-oxidation & anti-corrosion, repeated plugging durable
Environmental Resistance: Anti-oxidation, anti-tarnish, adapts indoor RC aircraft, motor & ESC working environment
Plating Standard: Full golden plating, improves conductivity and rust prevention performance
3. Structural Features
Solid one-piece brass machining structure, lantern spring male plug design for tight plug-in fit
Male lantern slotted spring design ensures stable clamping with female sleeve, no loose contact
Hollow female barrel structure for easy wire crimping installation
Integral gold plating on full surface to reduce conductive impedance
4. Application Scope
Widely used for RC Lipo lithium battery, model aircraft motor, ESC speed controller, drone power connection, RC model equipment charging wiring
5. Customization Options
OEM & ODM customizable service available
Custom plating thickness, custom packaging carton solution
Custom bulk packing quantity per carton
