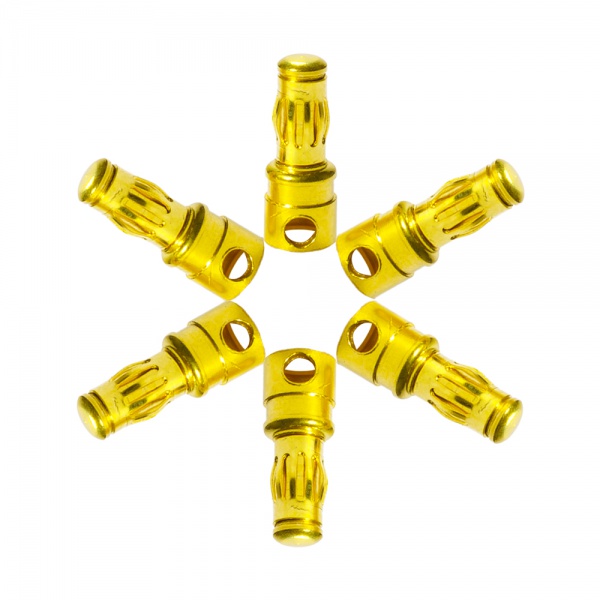

3.5mm Male Banana Plug
Industrial Grade | For RC Motor/ESC/Battery Wiring
Conductor/Body: Gold Plated Solid Brass
Fit Heat Shrink Tubing: 4~4.5mm
Temp: Normal ambient working temperature
Bending: Fixed crimp wiring structure, lantern split spring design
Voltage: 500V
Current Rating:40A
Certifications: Compliant RoHS
Customizable: OEM/ODM, size & plating customization
3.5mm Male Banana Plug
Industrial Grade Male Banana Plug Specifications, Strictly Per Product Standard, Suitable for RC Model Motor, ESC and Lithium Battery Connection
1. Basic Specifications
Product Name: 3.5mm Male Banana Plug / Lantern Type Gold Plated Terminal Plug
Body Material: Solid Brass with Full Gold Plated Surface
Fit Accessory: Matched 4~4.5mm inner diameter heat shrink tubing
Rated Voltage:500V
Rated Current:40A
Nominal Size: 3.5mm outer diameter plug dimension
Origin: Guangdong, China
2. Key Performance Parameters
Contact Performance: Split lantern spring structure ensures tight plug-in contact, stable conductive performance
Wear Resistance: Gold plating layer improves oxidation resistance and plug wear resistance
Environmental Resistance: Anti-oxidation, anti-corrosion for conventional RC equipment indoor & outdoor working environment
Conductive Capacity: Stable 40A rated current loading under 500V rated voltage
3. Structural Features
Brass Body: Integrated lantern slotted split design, elastic clamping when mating with female banana socket
Crimp Wiring Structure: Rear hole design for wire crimp fixation, cooperate with 4~4.5mm heat shrink tube for insulation protection
Surface Finish: Full gold plating reduces contact resistance, prevents copper oxidation
4. Application Scope
Widely used for RC drone/RC car model motor terminal, ESC controller wiring, lithium polymer battery pack connection and other RC model power connection scenarios.
5. Customization Options
Custom plug dimension & plating thickness
Custom OEM packing & marking
Custom bulk order production per client drawing/sample
