Waterproof Connector Cable

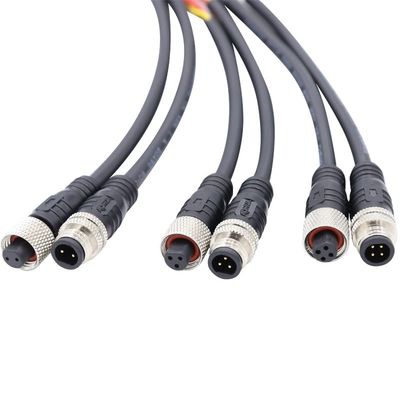

M8
Pin No. : 2/3/4/5/6
Polarity: Standard/Right Angle
Material:
- Wire: PVC、Rubber
- Jack: PVC + Nylon
- Pin: Nickel plated Copper
Current Rating: 2~4A
Voltage Rating: 60~250V
Suitable Wire: ≤1.5mm²
Times of plug: 1500
Protection Rating: IP68
Temperature Range: -40℃~+105℃
Locking Method: Male female docking spiral
Applications: Industrial automation, robotics, medical equipment, security surveillance, and equipment connectivity in harsh environments.

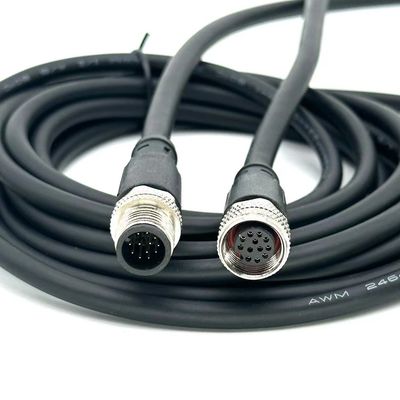

M12
Pin No. : 2/3/4/5/6/8
Polarity: Standard/Right Angle/T-Type/Y-Type
Material:
- Wire: PVC、Rubber
- Jack: PVC + Nylon
- Pin: Nickel plated Copper
Current Rating: 3~10A
Voltage Rating: 60~250V
Suitable Wire: ≤2.5mm²
Times of plug: 1500
Protection Rating: IP68
Temperature Range: -40℃~+105℃
Locking Method: Male female docking spiral
Applications: Industrial automation, robotics, medical equipment, security surveillance, and equipment connectivity in harsh environments.

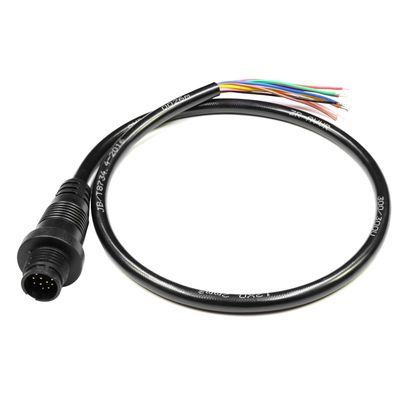

Custmize M12 12Pin Wire Harness
Pin No. : 12
Material:
- Wire: PVC
- Pin: Nickel plated Copper
- Gender: Male/Female
Current Rating: 1.5A
Wire Guage: 14 AWG(2mm²)
Length: Customize
Times of plug: 500
Protection Rating: IP67
Temperature Range: -40℃~+105℃
Locking Method: Male female docking spiral
Applications: Industrial automation, robotics, medical equipment, security surveillance, and equipment connectivity in harsh environments.

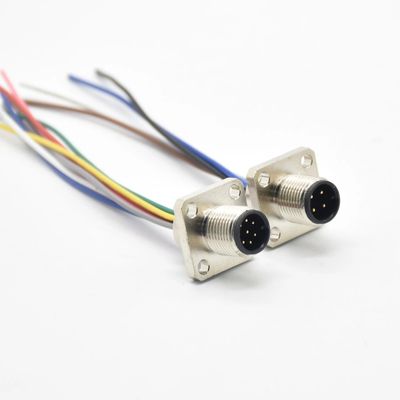

M12 A-coding Flange Wire Harness
Pin No. : 2/3/4/5/6/7/8/9/12/17
Material:
- Conduct: Nickel-plated Brass
- Rubber Circle: PA66
- Pin: Nickel plated Copper
Current Rating: 2~5A
Voltage Rating: 5V~60V
Protection Rating: IP67
Temperature Range: -25°c~+85°c
Locking Method: Threaded Type
Applications: Industrial automation, robotics, medical equipment, security surveillance, and equipment connectivity in harsh environments.

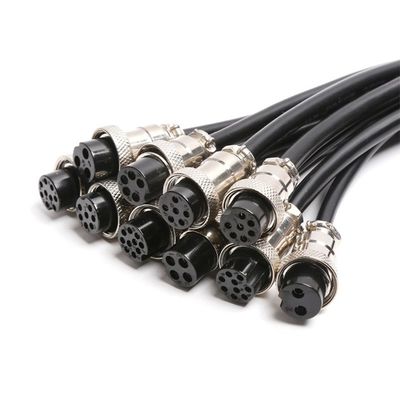

GX16
Pin No. : 2/3/4/5/6/7/8/9/10
Polarity: Standard/Right Angle/T-Type/Y-Type
Material:
- Wire: PVC、Rubber
- Jack: PVC + Nylon
- Pin: Nickel plated Copper
Current Rating: 3~7A
Voltage Rating: 250~400V
Times of plug: 1500
Protection Rating: IP68
Temperature Range: -40℃~+105℃
Locking Method: Male Female Pog in
Applications: Military equipment/aerospace systems/heavy-duty vehicle electronics
AUTO Sensor Cable

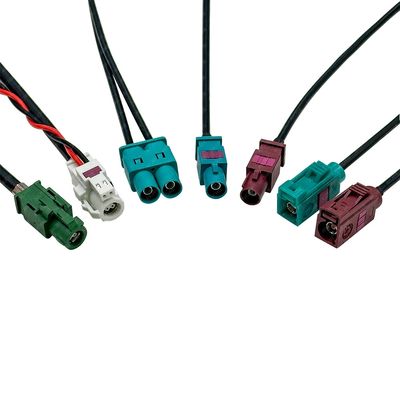

FAKRA automotive connector cable
Pin : 1/2/4 pin
Connector Series: A-Z
Polarity: Standard/Right Angle
Gender: Male/Female
Temperature Range: 0℃ to +80℃
Impedance: 50Ω
Frequency Range: DC to 6 GHz
Orientation: Straight/Right Angle
Cable Specs: RG174/RG316 coaxial cable
Locking Method: pog in
Typical Applications: automotive radar systems/GPS antennas/vehicle cameras
