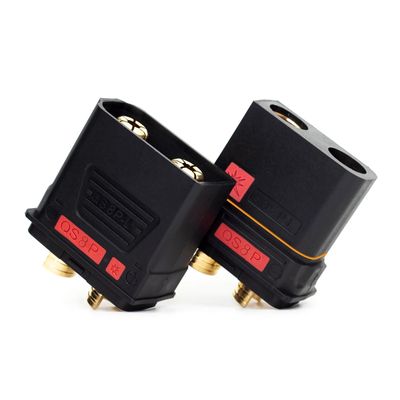

QS8P-L_130A
Specification
Gender: Female/Male
Conductor Material: Brass
Insulation Material: PA66
Plating: Gold (Au)
Coating Thickness: 1.5 μ
Color: Black
Flammability Rating: UL94-V0
Wire Range: 8-12AWG
Weight: 54g
Applications: Drones, electric vehicles, electric motorcycles, RC (remote control), energy storage, controllers, lithium batteries, etc.
Electrical Properties
Rated Current: 130A
Max Current: 180A
Rated Voltage: 500V DC
Contact Resistance: 0.51mΩ Max
Insulation Resistance: 500mΩ Min
Operating Temperature: -20°C~120°C
Insertion Force: During the service life, the insertion and extraction force of the discharge port is between 7N-30N

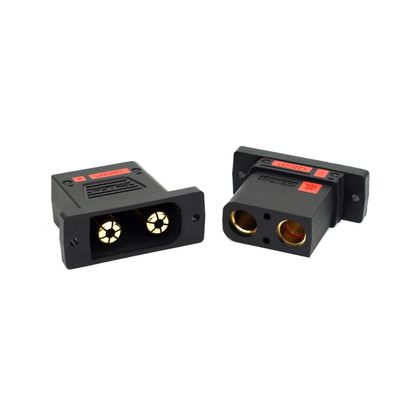

QS8P-U_130A
Specification
Gender: Female/Male
Conductor Material: Brass
Insulation Material: PA66
Plating: Gold (Au)
Coating Thickness: 1.5 μ
Color: Black
Flammability Rating: UL94-V0
Wire Range: 8-12AWG
Weight: 54g
Applications: Drones, electric vehicles, electric motorcycles, RC (remote control), energy storage, controllers, lithium batteries, etc.
Electrical Properties
Rated Current: 130A
Max Current: 180A
Rated Voltage: 500V DC
Contact Resistance: 0.51mΩ Max
Insulation Resistance: 500mΩ Min
Operating Temperature: -20°C~120°C
Insertion Force: During the service life, the insertion and extraction force of the discharge port is between 7N-30N
QS8P-S_130A
Specification
Gender: Female/Male
Conductor Material: Brass
Insulation Material: PA66
Plating: Gold (Au)
Coating Thickness: 1.5 μ
Color: Black
Flammability Rating: UL94-V0
Wire Range: 8-12AWG
Weight: 60g
Applications: Drones, electric vehicles, electric motorcycles, RC (remote control), energy storage, controllers, lithium batteries, etc.
Electrical Properties
Rated Current: 130A
Max Current: 180A
Rated Voltage: 500V DC
Contact Resistance: 0.51mΩ Max
Insulation Resistance: 500mΩ Min
Operating Temperature: -20°C~120°C
Insertion Force: During the service life, the insertion and extraction force of the discharge port is between 7N-30N
