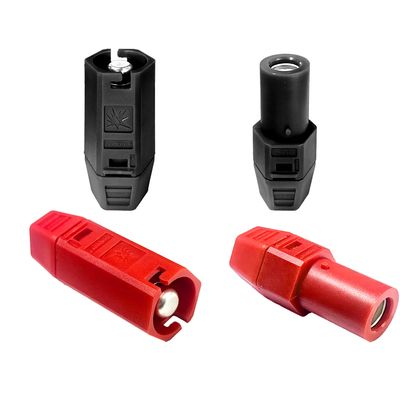

QS12H_250A

---

Specification

Gender: Female/Male

Conductor Material: Brass

Insulation Material: PA66

Plating: Sliver (Ag)

Coating Thickness: 1.5 μ

Color: Black&Red

Flammability Rating: UL94-V0

Wire Range: 4-8AWG

Weight: 97g

Applications: Drones, electric vehicles, electric motorcycles, RC (remote control), energy storage, controllers, lithium batteries, etc.

Electrical Properties

Rated Current: 250A

Max Current: 320A

Rated Voltage: 500V DC

Contact Resistance: 0.2mΩ Max

Insulation Resistance: 500mΩ Min

Operating Temperature: -20°C~120°C

Insertion Force: During the service life, the insertion and extraction force of the discharge port is between 30N-90N

Mechanical Behavior

Rockwell hardness: >119R

Tensile breaking strength: >700kg/cm²

Plug life: 1000times

Shear strength: >790kg/cm²

Environmental Performance

Warm experiment:

Temperature 55℃±2℃, humidity 90%-95% environment for 48 hours, room temperature for 12 hours, no abnormal performance

Temperature resistance:

Take 80℃±2℃, 12 hours → normal temperature for 4 hours → 30℃±2℃; 12 hours → normal temperature for 4 hours as a cycle, do 3 cycle tests, the performance is normal

High temperature resistance:

After 12 hours at 55℃±2℃, there is no abnormal performance

Low temperature resistance:

-30℃±2℃ for 12 hours, no abnormal performance

Salt spray resistance:

Meet the NSS 48-hour requirement, with no abnormal performance
