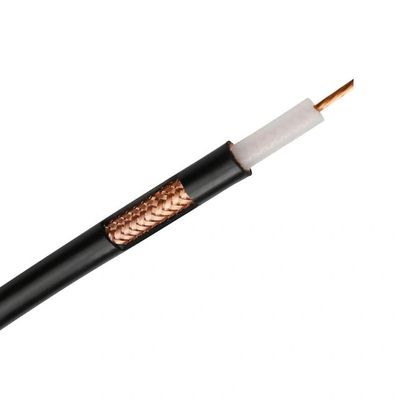

Coaxial Cable

---

Model: RG58(SYV50-3)

Material:

• Core: Custom (Pure copper/tinned cooper)
• Insulation: PE
• Jacket: PVC/PE/PTFE

Jacket color: Black

Jacke thickness: 1.3mm

Shielding layer material: copper-clad aluminum(tinned cooper)

Insulation color: translucent

Insulation thickness: 0.40mm

Shield: Yes

Impedance:  50Ω ±2

OD: 2mm~17mm

Maximum frequency:  DC~1GHz

Application:  widely used for short-distance RF connections in walkie-talkies, test equipment, WiFi antennas, and avionics due to its flexibility, 50Ω impedance, and BNC compatibility. This cost-effective solution excels in space-constrained applications.

Model: RG174

Material:

• Core:  CCS (Copper clad steel)
• Insulation: PE
• Jacket: PVC
• Shielding layer: tinned cooper/sliver plated copper

Color:

• Insulation: Translucent
• Jacket: Black

Impedance:  50Ω ±2

OD: 2mm~17mm

Maximum frequency:   DC~1 GHz

Application:  RG174 is a single shielded coaxial flexible cable. Has characteristics such as flexibility, small diameter, and durability. Widely used in industries such as high-speed signal transmission, security monitoring, computer networks, etc.

Model: SYV50 series

Material:

• Core: Copper
• Insulation: PE
• Jacket: PVC
• Shielding layer: pure copper

Color:

• Insulation: Translucent
• Jacket: Black

Impedance:  50Ω ±2

OD: 1.5mm~17.5mm

Maximum frequency:   DC~1 GHz

Application:   The SYV-50 cable series, with solid polyethylene insulation, is manufactured according to the standard GB/T14864-1993. It is applied in the transmission of analog signals and high-speed digital signals such as fixed and mobile radio communication and RF signal transmission in electronic devices. This cable has uniform characteristics in impedance, low loss, low delay, and minimum attenuation, etc.

Model: SYV75 series

Material:

• Core: Copper
• Insulation: PE
• Jacket: PVC
• Shielding layer: pure copper

Color:

• Insulation: Translucent
• Jacket: Black

Impedance:  75Ω ±2

OD: 2mm~11.5mm

Maximum frequency:   DC~1 GHz

Application:   SYV-75 Cable Series with solid polyethylene insulated is manufactured according to standard GB/T14864-1993. It is applied in transmission of analog signal and high speed digital signal such as fixed, mobile radio communication and RF signal transimission in electronic device. This cable has uniform characteristic in impedance, low loss, low delay, minimum attenuation etc.
