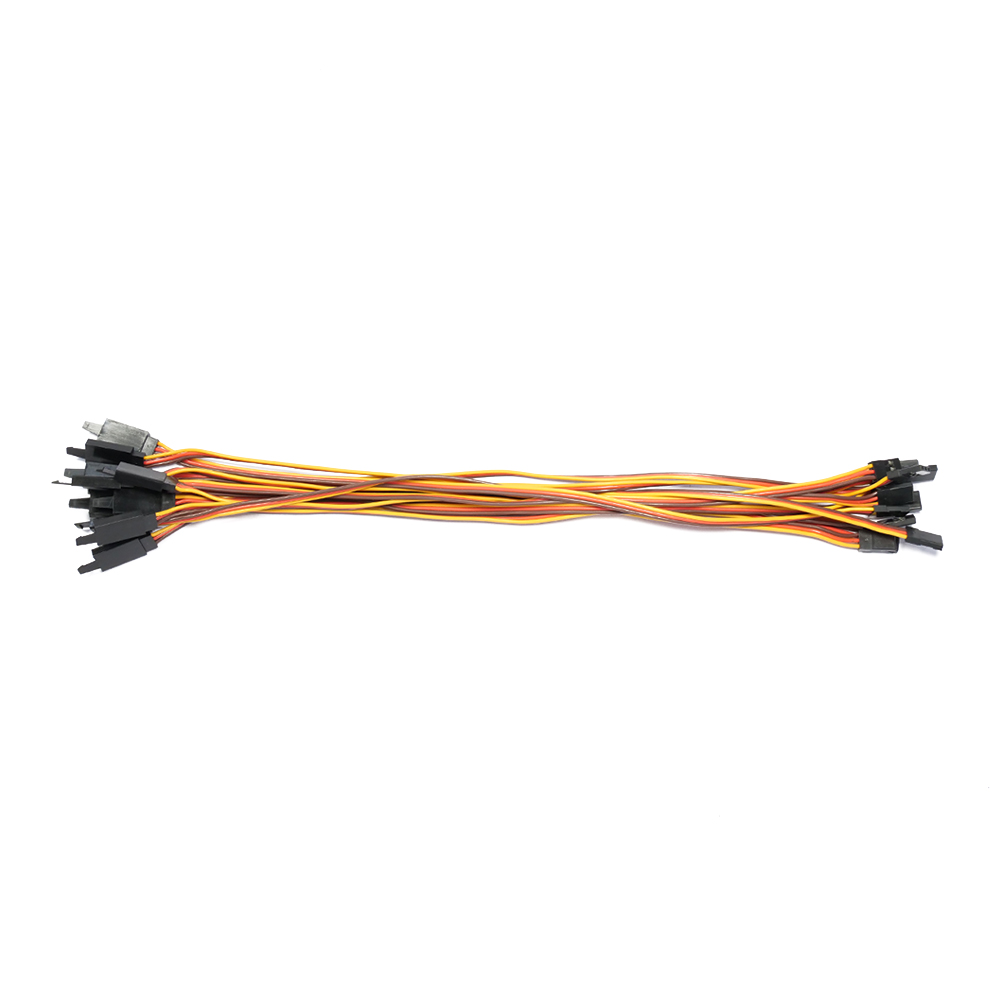

Servo Extension Cable
For RC Models / Home Appliances / Power Applications
Conductor: Tinned/ Bare Stranded Pure Copper (22AWG)
Sheath: PVC Insulation
Temp: -20℃~+80℃
Voltage: 6V / 12V
Connector: 3P Male to Female Locking Connector
Length: Customizable
Certifications: RoHS, REACH
Customizable: Core Count / Length / Connector Type
Servo Extension Cable Specifications
Industrial & Hobby Grade Servo Lead, for RC Models, Home Appliances, and Low-Voltage Power Applications
1. Basic Specifications
Product Name: 22AWG Servo Extension Cable / 3Pin Servo Lead Wire / Servo Male-to-Female Extension Cord
Conductor Material: Stranded Pure Copper (22AWG)
Insulation Material: PVC (Wear-Resistant, Insulated)
Rated Voltage: 6V, 12V
Working Temperature Range: -20℃ ~ +80℃
Wire Gauge: 22AWG
Core Count: 3-core
Connector Type: 3P Male to Female Locking Connector
Length: Customizable
2. Key Performance Parameters
Insulation Resistance: ≥100MΩ (20℃), Good Insulation Performance for Low-Voltage Use
Flexibility: Flexible Copper Strands, Easy Installation in Tight Spaces
Connector Stability: Locking Design to Prevent Loose Connections
3. Structural Features
3-core Stranded Copper Conductor, with PVC Insulation
Male-to-Female 3P Connectors, Easy Plug-and-Play
Compact and Lightweight, Suitable for RC Models and Small Appliances
4. Application Scope
Widely Used for RC Servo Motors, Drones, Remote Control Models, Home Appliances, and Low-Voltage Power Signal Transmission
5. Customization Options
Custom Length (per unit/ per roll)
Custom Connector Type (if applicable)
OEM/ODM Service Accepted
Samples Available
