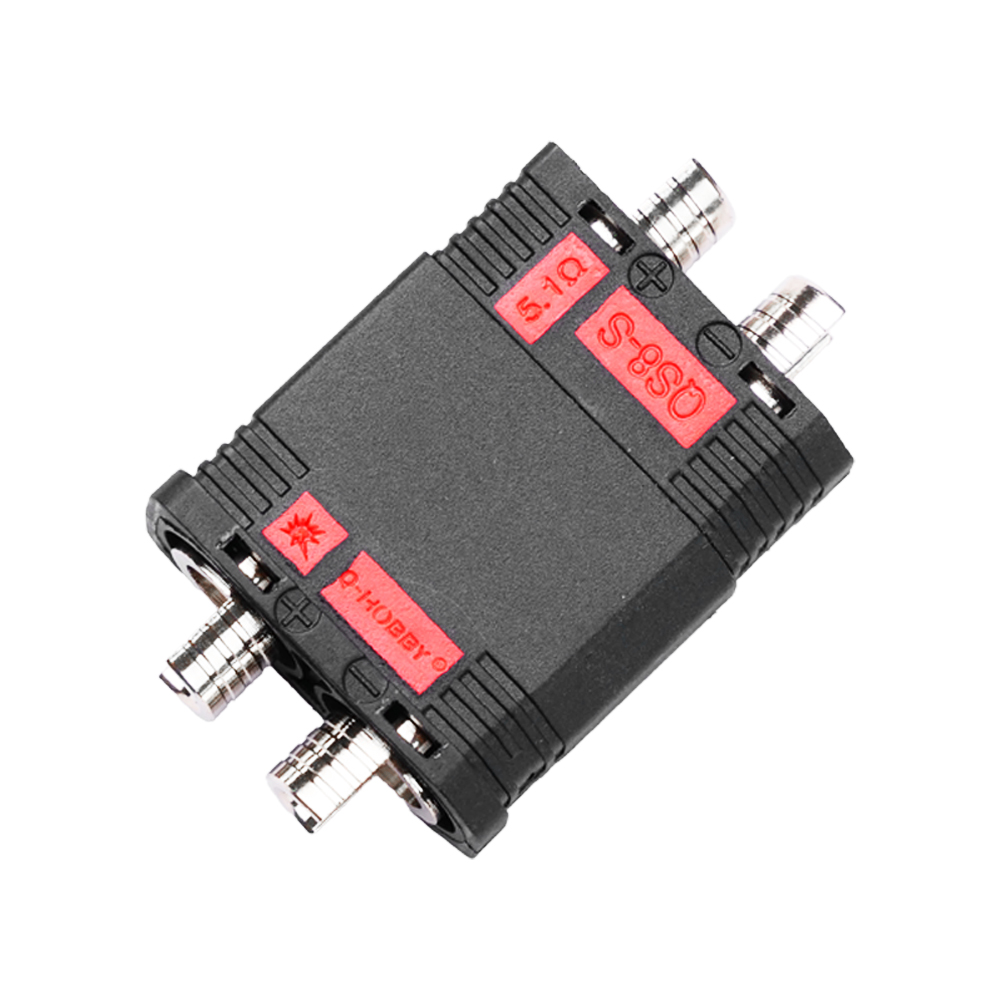

QS8S Nickel‑Plated Battery Connector
Economy Grade | For Drones / RC Models
Conductor: Nickel‑Plated Brass Contact
Sheath: PA66(Nylon) Housing
Temp: -20℃~+120℃
Bending: Not Applicable
Voltage: 600V
Gauge: Not Applicable
Certifications: Not Specified
Customizable: Male/Female Set
QS8S Nickel‑Plated Battery Connector Specifications
Economy Grade QS8S Battery Connector Specifications, Compliant with industry standards, Suitable for Drones, RC Models and related power equipment
1. Basic Specifications
Product Name: QS8S Nickel‑Plated Battery Connector
Conductor Material: Nickel‑Plated Brass
Insulation Material: PA66(Nylon)
Sheath Material: PA66(Nylon)
Rated Voltage: 600V
Rated Current: 110A
Working Temperature Range: -20℃ ~ +120℃
Contact Resistance: Max 0.51mΩ
Gender: Male / Female
Shape: Rectangle
Weight: 20g/pcs
Place of Origin: Guangdong, China
2. Key Performance Parameters
Feature: Built‑in Anti‑Spark function
Environmental Resistance: Work stable within -20℃~+120℃
Current‑Carrying Capacity: Rated 110A
Contact Resistance: ≤0.51mΩ
IP Level: No IP protection
Certifications: Not Specified
3. Structural Features
Brass contact with nickel‑plated treatment, low contact resistance.
PA66 Nylon housing, rectangle structure.
Anti‑spark design protects power system when plugging and unplugging.
Male and female mating set for quick connection.
4. Application Scope
Widely Used for Drones, RC models and other high‑current power equipment that need fast battery connection.
5. Customization Options
support additional customization as per original product info.
