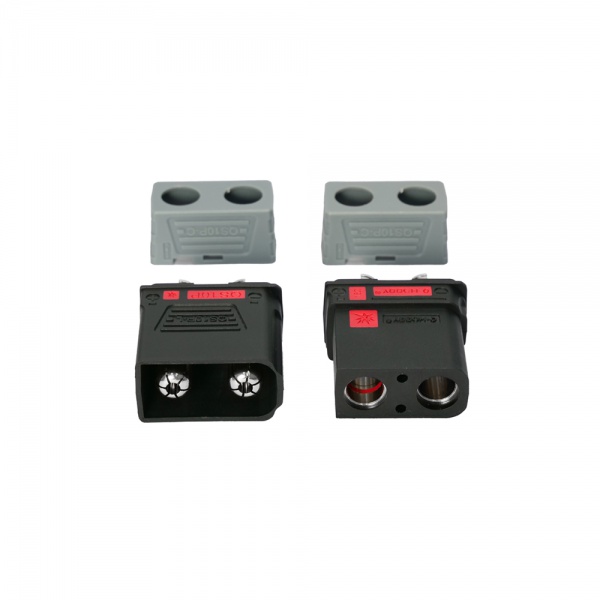

QS10P-L High-Current Anti-Spark Connector
Industrial Grade | For EV/E-Motorcycle/Energy Storage Drones
Rated Current: 210A
Rated Voltage: 500V DC
Conductor: Nickel-plated copper
Shell Material: UL94-V0 PA66 Flame Retardant Plastic
Temp: -20℃ ~ +120℃
Contact Resistance: Max 0.51mΩ
Core Feature: Built-in anti-spark structure
Certifications: UL94-V0 Flame Retardant Standard
Customizable: Shell Color, Logo, Matching Wire Size
QS10P-L High-Current Anti-Spark Connector Specifications
Industrial Grade High Current Anti-Spark Power Connector, Compliant With UL94-V0 Flame Retardant Standard, Suitable For E-Motorcycles, EV, Energy Storage Lithium Battery & Industrial Drones
1. Basic Specifications
Product Name: QS10P-L High-Current Anti-Spark Connector
Rated Current: 210A
Rated Voltage: 500V DC
Conductor Material: Nickel-plated copper
Insulation & Sheath Material: PA66 Flame Retardant Plastic
Working Temperature Range: -20℃ ~ +120℃
Contact Resistance: Max 0.51mΩ
2. Key Performance Parameters
Anti-Spark Function: Built-in anti-spark design to avoid ignition when plugging/unplugging high-current equipment
Conduction Performance: Nickel-plated copper terminals ensure stable conduction, maximum contact resistance only 0.51mΩ, low heat generation under long-time high current load
Environmental Resistance: Stable performance between -20℃ to 120℃, adapt to indoor and outdoor new energy equipment working environment
Flame Retardant Grade: UL94-V0 high flame retardant PA66 shell, meet industrial fire safety standards
Voltage Withstand Performance: Support stable operation under 500V DC high voltage, safe for large-capacity lithium battery connection
3. Structural Features
Nickel-Plated Copper Contacts: Excellent conductivity, anti-oxidation, wear-resistant, long service life
Integrated PA66 Housing: High mechanical strength, anti-impact, anti-breakage
Anti-Spark Built-in Structure: Effectively eliminate electric sparks during plugging and unplugging to improve operation safety
Simple Plug-in Design: Quick assembly and disassembly, easy wiring maintenance
4. Application Scope
Widely used for electric motorcycles, electric vehicles, energy storage lithium battery packs, industrial drones and other small & medium high-power new energy equipment that need high current safe connection.
5. Customization Options
Custom wiring terminal size
Custom wire matching specification
Custom shell color
Custom logo printing on connector housing
