QS10--500A

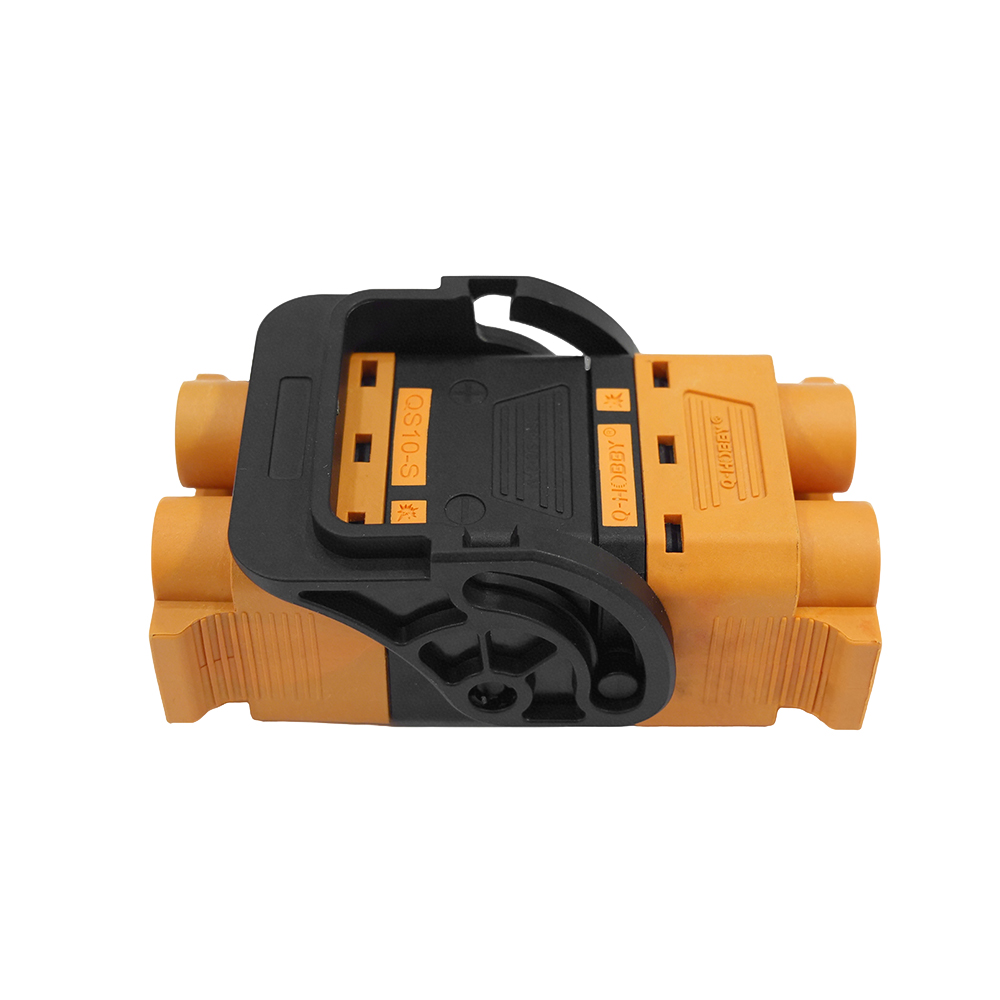

QS10 500A Anti-Spark Connector

Industrial Grade | For EV/Drone/Battery Power

Conductor: Gold-Plated Copper Contacts

Housing: PA (Polyamide)

Temp: -20℃ ~ +120℃

Current/Voltage: 500A, DC 500V

Wire Gauge: 4AWG~10AWG

Pin: 4pin

Gender: Male/Female

Feature: Anti-Spark, Portable Pull-Ring Design

QS10 500A High Current Anti-Spark Connector Specifications

Industrial Grade QS10 Connector Specifications, Suitable for EV, Drone, Battery & Heavy-Duty Power Connections

1.

2. 1.Basic Specifications
   Product Name: QS10 500A High Current Anti-Spark ConnectorConductor
   Material: Gold-Plated Copper Contacts
   Insulation/Sheath Material: PA (Polyamide) Housing
3. Rated Voltage: DC 500V
4. Rated Current: 500A
5. Working Temperature Range: -20℃ ~ +120℃
6. Wire Gauge (AWG/mm²): 4AWG~10AWG
7. Pin Count: 4pin
8. Gender: Male/Female Plug Set
9. Shape: Rectangle

10.

11. 2.Key Performance Parameters
12. Anti-Spark Feature: Built-in anti-spark design for safe connection/disconnection
13. Contact Performance: Gold-plated copper contacts for low resistance and stable conductivity
14. Mechanical Design: Portable pull-ring design for easy plugging/unplugging
15. Environmental Resistance: Industrial-grade PA housing for impact and heat resistance
16. Application Suitability: Rated for heavy-duty power transmission in EV and drone systems
17.

18. 3.Structural Features
19. 4pin Design: 4-pin configuration for reliable multi-point power transmission
20. PA Housing: Durable, heat-resistant PA material for long service life
21. Gold-Plated Contacts: Corrosion-resistant plating ensures stable electrical performance
22. Male/Female Pair: Complete plug-and-socket set for secure mating
23.

24. 4.Application Scope
25. Widely used for EV, drone, battery power systems, heavy-duty electrical connections, and industrial scenarios requiring high-current anti-spark power transmission.
26.

27. 5.Customization Options
Customization available
