Multi-pin Combination Custom Scheme: High-current anti-spark connector space-saving structural design

1. 1. Industry Pain Point: Large Connector Occupies Excessive Cabinet Space

2. Energy storage cabinet, heavy-load AGV and marine power system designers face a universal contradiction: high current demand requires multi-channel power transmission, while equipment internal installation space is extremely limited. Traditional multi-connector parallel scheme has obvious drawbacks: multiple separate connectors occupy more cabinet space, more wiring harnesses increase assembly difficulty, more contact points raise overall circuit resistance, and hot plugging of each separate connector generates continuous sparks, greatly reducing system safety. Many European energy storage clients feedback that multi-connector wiring leads to 30% longer assembly time and frequent post-sale contact failure.

3. 2. Flaws of Split Multi-connection Traditional Solution

4. When customers use 2–4 independent high-current connectors to realize multi-path power output: Additional fixing brackets and wiring grooves need to be reserved in the cabinet, increasing overall equipment volume by at least 25%; Each connector has independent contact resistance, series superposition leads to serious overall temperature rise under full load; No unified pre-charge structure for multiple loops, each plug-in action will produce visible electric arc, cumulative ablation damages terminals; Difficult to realize unified waterproof and vibration-resistant sealing for multiple scattered connectors, failure risk rises in humid marine and outdoor energy storage environments.

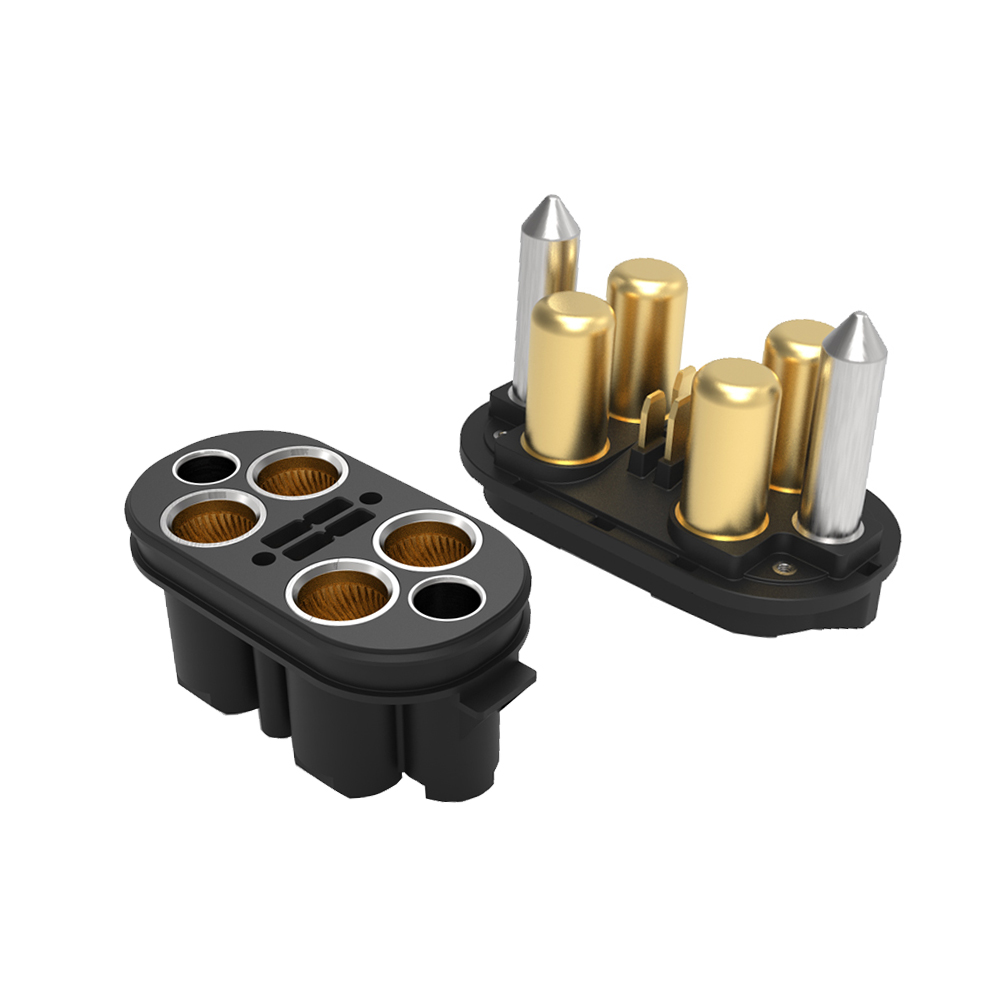

5. 3. YOUWEI Custom Multi-pin Integrated QS Antispark Connector Space-saving Design

6. Our R&D team develops integrated multi-pin combination customized QS Antispark connector, integrating multi-channel power pins, signal sampling pins and unified pre-charge module into one compact housing, solving space waste radically:

7. 3.1 Integrated Single-shell Multi-power Loop Layout

8. Customize 2P/3P/4P multi-power pin combination in one plastic housing according to customer loop quantity demand. One connector replaces 2–4 separate connectors, reducing cabinet reserved installation space by over 40%. We support mixing power terminals (150A–500A per pin) and signal terminals in the same housing.

9. 3.2 Shared Built-in Pre-charge Anti-spark System

10. Only one set of pre-charge resistor and pre-charge terminal is built inside the integrated multi-pin connector. All power loops complete voltage balance synchronously before main contact, zero spark during overall hot plugging, avoiding repeated arc erosion of split connectors.

11. 3.3 Compact Optimized Housing Structure

12. Custom thin-wall high-temperature resistant PBT shell, narrow edge fixing buckle design. We can modify shell width, height and mounting hole position to match customer limited cabinet gap size. Internal terminal short-distance layout reduces overall harness length and circuit resistance.

13. 4. Space & Performance Test Data Comparison

• Required cabinet installation area: Split Multiple Standard Connectors as the 100% benchmark, while Custom Integrated Multi-pin QS Antispark Connector only takes up 56% of the space
• Total circuit contact resistance under 3 parallel 300A loops: Split Multiple Standard Connectors reaches 0.036Ω, and Custom Integrated Multi-pin QS Antispark Connector is only 0.012Ω
• Average assembly time for single equipment: It takes 12 minutes for Split Multiple Standard Connectors, but merely 4.5 minutes for Custom Integrated Multi-pin QS Antispark Connector
• Visible sparks during full-system hot plug: Sparks appear in every plug cycle of Split Multiple Standard Connectors; zero spark occurs with Custom Integrated Multi-pin QS Antispark Connector
• Difficulty of realizing IP protection grade: It is hard for Split Multiple Standard Connectors to reach IP65; Custom Integrated Multi-pin QS Antispark Connector achieves standard IP67 with customized sealing ring

5. 5. Typical Application Cases of Multi-pin Custom QS Antispark Connector

6. Large 4-channel energy storage cabinet power interfaces, heavy-duty 400A AGV dual drive power terminals, dual-battery parallel electric ship main power connector, multi-module stacked battery pack parallel connection port. We provide free 3D structural drawing customization service for engineering teams.

7. 6. Conclusion & Inquiry Guide

8. Integrated multi-pin customized QS Antispark connector solves the space waste, high resistance and multi-spark troubles brought by split multi-connector scheme. It reduces equipment volume, lowers assembly cost and improves system safety for limited-space new energy equipment. Our technical engineers can adjust pin combination, shell size and sealing structure according to your cabinet design drawing. If you have any request please contact with my tech team http://www.youweic.com
