1. Pain Points: Dual Hazards of Vibration & Arcing on Off-Road Equipment Connect
”
1. Pain Points: Dual Hazards of Vibration & Arcing on Off-Road Equipment Connectors
Off-road machinery including heavy AGVs, mining loaders, construction forklifts and electric work vessels operates under extreme harsh conditions: continuous X/Y/Z random vibration, frequent mechanical shock, dust, temperature swings and repeated high-current plug-unplug cycles. Traditional large-current connectors face two fatal coupled failures in these rugged scenarios:
- 1.1Vibration-induced contact degradationLong-term jitter triggers micro-movement between male and female terminals, causing micro-abrasion of plating layers. Contact resistance surges sharply, generating excessive heat and local overheating. Under ISO 16750-3 vibration testing (10–2000Hz, 50m/s² acceleration), ordinary connectors produce frequent transient disconnection (>1μs), triggering BMS fault alarms and unplanned equipment shutdown.
- 1.2High-current arcing worsened by unstable contactOff-road equipment carries large-capacity lithium battery packs with built-in bus capacitors. When plugging/unplugging, unbalanced voltage between battery and load creates instantaneous surge current up to thousands of amps, forming obvious electric arcs. Vibration loosens terminal fit clearance, amplifying arc intensity. Consequences include terminal ablation, insulation aging, fire risks, and 60% shorter connector service life compared to stable indoor equipment.For equipment manufacturers, these failures bring heavy losses: frequent component replacement, project delivery delays, safety accident risks, and poor after-sales reputation. Engineers urgently need customized connectors that integrate anti-vibration mechanical structure and built-in anti-spark pre-charge protection.
2. Technical Principle: How QS Series Antispark Connector Solves Arcing & Vibration Synergistically

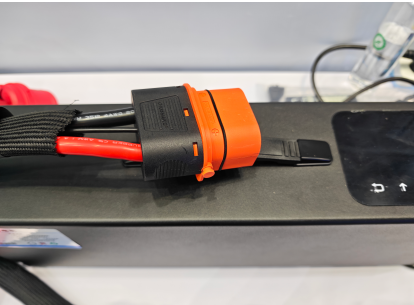

Youwei’s Q Series Antispark Connector adopts dual-core design: built-in pre-charge anti-spark circuit + fully optimized shock-resistant mechanical architecture, eliminating root causes of both arcing and vibration failure.
2.1 Anti-spark Mechanism: Pre-charge Step Contact to Eliminate Plug Arcs
All QS connectors adopt stepped pin layout: pre-charge resistance pin contacts first, followed by main power pins.
- Step 1: Pre-charge path turns on first. Precision built-in power resistance limits instantaneous surge current, slowly charging bus capacitors of AGV/energy storage systems; voltage difference between battery and load drops below 10% within 0.3–1.2s.
- Step 2: Main large-current pins engage with near-zero voltage difference. No air ionization occurs, completely erasing visible sparks during mating/unmating.Compared with conventional connectors without pre-charge, QS cuts peak instantaneous current by over 75%, avoiding molten terminal damage from arc ablation.
2.2 Customizable Anti-vibration Structural Optimization for Off-Road Working Conditions
We tailor three core anti-vibration modules according to customers’ off-road vibration intensity, plug frequency and load current:
(1) Multi-point torsion spring terminal contact system
Standard QS uses 6–8 independent elastic contact fingers, forming multiple parallel conductive paths. The torsion spring delivers constant contact pressure under continuous vibration, automatically compensating tiny gaps caused by micro-displacement. Test data: after 8-hour triaxial random vibration, contact resistance increment ≤0.05mΩ; ordinary single-piece spring terminals see resistance rise above 0.4mΩ under identical testing.
(2) Double-lock CPA anti-loosening housing structure
Custom reinforced nylon shell with thickened stiffening ribs; secondary CPA locking buckle prevents accidental separation under violent bumping. Terminal internal retaining force ≥45N, no terminal retreat even under 100G mechanical shock (mining vehicle standard).
(3) Plating customization for anti-micro-abrasion
For high-vibration mining/construction machinery, we offer optional 3μm hard gold plating on contact surfaces, resisting friction wear from long-term micro-vibration and suppressing contact resistance drift. Conventional tin-plated terminals suffer severe oxidation after vibration cycles.
2.3 Material Matching for Extreme Temperature & Vibration Coupling
Shell: Custom high-impact PA66 with anti-aging additive, stable performance from -40℃ to 125℃, no cracking under alternating vibration and temperature cycling.Sealing: IP67 customizable silicone gaskets, blocking dust and water intrusion on construction sites while maintaining elasticity to absorb vibration stress.
3. Comparative Test Data: QS Series vs Traditional Connectors Under Off-Road Vibration Cycles
We conducted standardized combined testing simulating heavy AGV and off-road loader operating environments (ISO 16750-3 vibration + 500 plug/unplug cycles, rated current 300A):
| Test Index | Traditional Non-Antispark Connector | Customized QS Series Antispark Connector |
|---|---|---|
| Initial contact resistance | 0.42mΩ | 0.28mΩ |
| Resistance after vibration + 500 plugs | 1.17mΩ (overheat risk) | 0.33mΩ (stable) |
| Visible arc during plugging | Obvious bright spark every cycle | Zero spark observed |
| Terminal surface after test | Severe ablation & oxidation spots | Smooth, no wear marks |
| Transient disconnection during vibration | 147 times over 8h test | 0 transient disconnection |
| Service life estimation for off-road use | 6–12 months | 36–48 months |
Key conclusion: Custom anti-vibration QS antispark connectors extend service life by over 300% while eliminating arc safety hazards for off-road machinery.
4. Customization Guide: Select QS Anti-Vibration Antispark Connector for Your Off-Road Projects
Our engineering team provides full parameter customization targeting electric forklifts, mining AGVs, off-road battery swap cabinets and energy storage vehicles.
Key customizable dimensions based on working conditions:
- Current & Voltage Rating: 50A–400A, 60V–1000VDC, match lithium battery pack, BMS and fast-charging system specifications
- Pre-charge Resistance Value: 2Ω–10Ω adjustable, customized for small AGV low-capacity or mining large-capacity energy storage loads
- Vibration Grade Matching:
- Light vibration (indoor electric forklift): Standard torsion spring + single lock
- Severe vibration (mining loader, off-road AGV): Thick gold plating + CPA double lock + reinforced shell
- Environmental Customization: IP65/IP67 sealing, wide-temperature resistant housing, salt-spray anti-corrosion plating for coastal electric vessels
- Mechanical Customization: Cable outlet angle, panel mount/wire-to-wire layout, lock operation force adjustment for quick battery swap workflows
All customized QS connectors pass UL, TUV and IEC 60512 certification, fully complying with global off-road machinery electrical safety standards.
5. Real Off-Road Application Case: 300A QS Antispark Connector for Heavy Mining AGVs
A European mining equipment manufacturer upgraded its 25-ton underground AGV power connection solution with customized QS8 antispark connectors:
- Working condition: 24-hour continuous operation, severe low-frequency vibration, daily 80+ battery swap plug cycles, ambient temperature -20℃~60℃
- Customized optimization: CPA double anti-vibration lock, 3μm hard gold contact plating, 5.6Ω built-in pre-charge resistance, IP67 dustproof & waterproof
- Field feedback after 12-month operation: Zero arc accidents, no BMS shutdown caused by contact resistance drift, connector maintenance frequency reduced by 85% compared to the previous imported ordinary connectors. The client cut overall equipment operating costs significantly.
6. Conclusion & Inquiry Guidance
Off-road machinery’s unique high-vibration operating environment amplifies the safety and reliability risks of large-current connectors. Separately solving arcing or vibration problems cannot deliver stable long-term operation. Youwei Technology’s customized QS Series Antispark Connector integrates built-in pre-charge anti-spark technology and fully tunable anti-vibration mechanical structures, addressing both core pain points from design fundamentals, cutting failure rates and lowering after-sales costs for battery pack, AGV, energy storage and off-road equipment manufacturers.Our professional electrical engineering team supports one-stop custom development according to your equipment vibration spectrum, current parameters and environmental requirements, and provides complete vibration test reports, certification documents and sample testing services.If you have any request please contact with my tech team http://www.youweic.com
