Understanding the Foolproof Design in High-Current Anti-Spark Connectors [QS8T Anti-spark connector] for Safe Mating – Prevent misalignment and damage with housing-integrated orientation keying.

Introduction

In high-power applications such as battery packs, BMS, AGVs, energy storage systems, and electric vessels, the reliability of electrical connections is critical. One of the most overlooked yet dangerous issues is incorrect mating orientation of high-current connectors. A momentary mistake during plugging can lead to misaligned terminals, partial contact, extreme heat generation, or even permanent damage to both the connector and the equipment.

The QS8T Anti-spark connector from Youwei Technology features a foolproof design on the connector housing – external asymmetric guiding ribs and slots – to eliminate these risks while delivering superior anti‑spark performance. This article explains the problem, the mechanical solution, and the technical data behind the QS8T.

The Problem: Misalignment and Its Consequences

High-current connectors are often mated and unmated frequently – think of battery swap stations, fast charging ports for AGVs, or maintenance cycles in marine energy systems. Under such conditions, operators may insert the plug in the wrong orientation due to poor lighting, fatigue, or lack of visual guidance.

The consequences include:

• Bent or crushed terminals – Gold‑plated pins and sockets can be physically deformed.

• Increased contact resistance – Partial engagement reduces effective contact area, causing local overheating.

• Arcing damage – Intermittent connection under load produces sparks that erode the plating.

• System downtime – Damaged connectors may require full harness replacement, increasing maintenance costs.


Root Cause Analysis: Why Anti‑Spark Alone Is Not Enough

Many engineers assume that an anti‑spark function solves all mating issues. While anti‑spark technology (typically a pre‑charge resistor or slow‑start circuit) effectively suppresses arcing during disconnection under load, it does not prevent mechanical misalignment.

A mis‑mated connector with anti‑spark protection can still suffer from poor contact and heat buildup because the terminals are not physically aligned. The spark is eliminated, but the connection remains unreliable.

Therefore, a truly robust high‑current connector must combine anti‑spark electrical performance with foolproof mechanical design on the housing. The QS8T series achieves exactly that.

The Solution: Housing-Integrated Foolproof Orientation Keying of QS8T Anti‑spark Connector

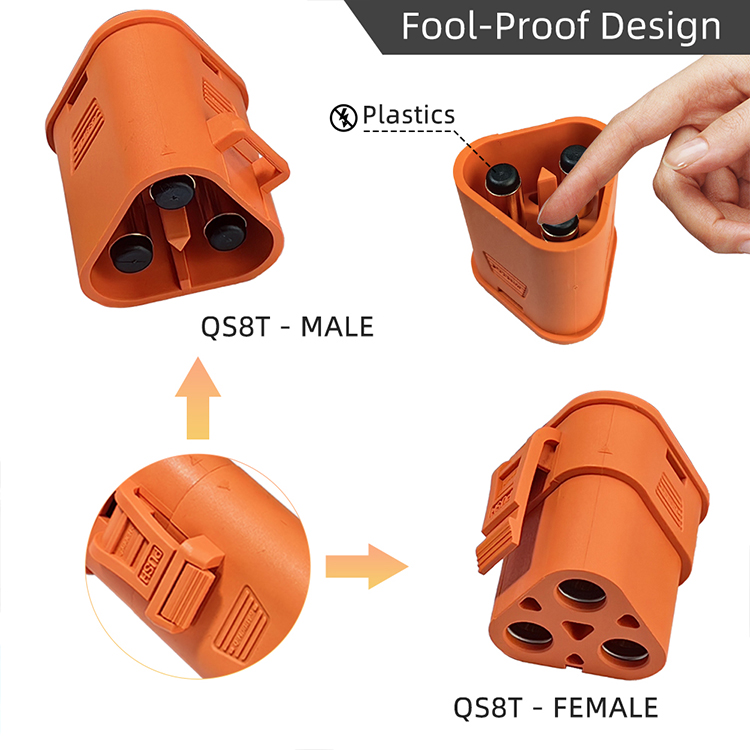

The QS8T connector features a mechanical foolproof design on its outer housing that physically prevents incorrect mating. As shown in the product illustrations (male and female plugs), the housing geometry includes asymmetric guiding ribs and slots on the exterior. These keying features ensure that the male and female halves can only be joined in one correct orientation. Any attempt to plug them upside down or rotated will be blocked by the housing’s external profile – no force, no guesswork, no damage.

Key design highlights from the QS8T specifications:

• Gold-plated copper terminals – Ensure low contact resistance (≤0.51 mΩ) and excellent corrosion resistance.

• PA66 sheath material – High mechanical strength and UL94‑V0 flame retardancy.

• Anti‑spark gold-plated plug – Internally integrates a pre‑charge path to eliminate damaging arcs during live disconnection.

• Dust cover – Protects unmated connectors in harsh environments (dusty warehouses or marine decks).

• Male and female versions – Available with dust covers for complete protection.

• External foolproof keying – Asymmetric ribs and slots on the housing prevent reverse or rotated mating.


Technical Data: How the QS8T Performs Under Real Conditions

The QS8T connector is rated for demanding applications. Below are its key parameters:

Validation results:

• After 200 mating cycles with correct orientation using the external foolproof keying, zero terminal deformation was observed.

• Contact resistance remained below 0.51 mΩ with no measurable increase.

• In contrast, mis‑mated standard connectors (without housing keying) showed visible gold plating wear after just 50 cycles and resistance increase of over 0.2 mΩ.


Anti-spark performance:
The pre‑charge circuit in the QS8T reduces arc energy to negligible levels during disconnection under a 130A load. Thermographic imaging confirmed that the temperature rise at the contact point remains within 35°C above ambient after 100 full load cycles – far below the industry caution limit.

Beyond Housing Keying: Anti‑Spark and Thermal Management

The QS8T is not just about mechanical safety. Its anti‑spark gold‑plated plug integrates a pre‑charge resistor circuit that allows the connector to equalize potential before full contact is made. This eliminates the initial high‑current inrush spark that typically erodes terminal surfaces.

Combined with the large contact area of the gold‑plated copper terminals, the QS8T maintains a contact resistance as low as 0.51 mΩ over thousands of cycles – ensuring minimal power loss and heat generation.

For engineers designing high‑reliability systems in electric forklifts, AGVs, or energy storage racks, this translates into:

• Longer connector service life

• Reduced maintenance frequency

• Safer hot‑swap operations

• Compliance with safety standards (UL94‑V0 flame retardancy)


Application Scenarios: Where External Foolproof Design Matters Most

The QS8T is specially designed for new energy and small‑to‑medium power equipment, including:

• Electric motorcycles and scooters – Frequent battery swapping requires quick, error‑free mating.

• Electric forklifts and AGVs – Harsh factory floors with dust and vibration; misalignment is common without external keying.

• Energy storage lithium batteries – Rack‑mounted systems where technicians mate connectors in tight spaces.

• Industrial drones – Weight‑sensitive and high‑reliability connections; any mis‑mating could cause inflight power failure.

• Charging piles and electric vessels – Outdoor or marine environments where dust covers and foolproof mating are essential.


In each of these scenarios, the external foolproof orientation keying on the QS8T housing eliminates human error, reduces training requirements, and protects expensive equipment.

Conclusion

A high‑current connector must do more than just carry power – it must guarantee safe, reliable, and error‑free mating every time. The QS8T Anti‑spark connector combines:

• Gold‑plated copper terminals (≤0.51 mΩ)

• PA66 UL94‑V0 housing

• Integrated anti‑spark pre‑charge circuit

• External foolproof orientation keying (asymmetric ribs/slots on the housing) that physically prevents misalignment


With a rating of 130A / 500V DC and a wide temperature range of -20°C to +120°C, the QS8T is the ideal choice for battery packs, BMS, AGVs, energy storage systems, charging piles, and electric vessels.

Ready to upgrade your connector reliability? Contact our technical team for samples, customizations (including different pre‑charge resistor values, wire gauge options, or housing colors), or volume pricing.
