GX12 Assembly Connector
Industrial Grade | For Sensors/Automotive/Industrial Control
Contact: Copper / Copper Gold Plated
Housing: Nylon PA66 (Black)
IP Rating: IP67 Waterproof & Dustproof
Temp: -40°C ~ +105°C
Rating: 5A / 125V
Pin Config: 4/5/8 Pin (Male/Female)
Certifications: RoHS Compliant
Customizable: Pin Count/Plating/Packaging
GX12 Assembly Connector Specifications
Industrial Grade Circular Connector, Compliant with RoHS Standards, Suitable for Industrial Sensors & Automation Equipment
1. Basic Specifications

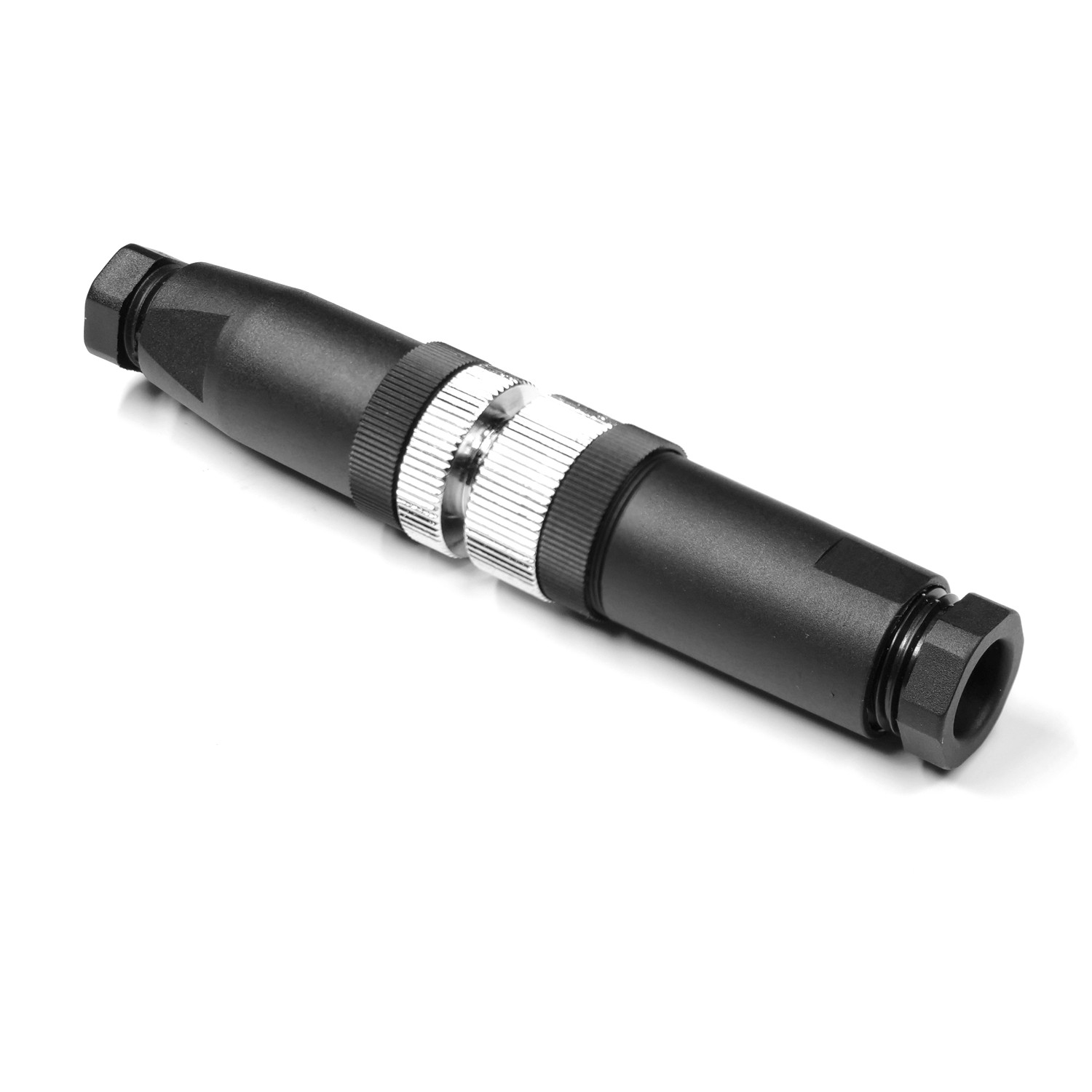

Product Name: GX12 Assembly Connector / M12 Field Assembly Circular Plug
Contact Material: Tinned Copper / Copper Gold Plated (Optional)
Housing Material: Nylon PA66 (Black, Impact & Heat Resistant)
Rated Current: 5A
Rated Voltage: 125V (Industrial Grade)
IP Level: IP67 (Waterproof & Dustproof)
Pin Configuration: 4/5/8 Pin Optional (Male/Female)
Working Temperature Range: -40°C ~ +105°C
Mounting Type: Field Assembly (Screw Terminal/Wire Connection)
Application: Automotive Sensors, Mechanical Equipment, Industrial Control Systems
2. Key Performance Parameters
Waterproof Performance: IP67 Rated, Fully Protected Against Water & Dust Ingress
Contact Resistance: ≤10mΩ (Gold Plated Contacts for Stable Conductivity)
Insulation Resistance: ≥1000MΩ (20°C), Safe for Industrial Low-Voltage Use
Mechanical Life: ≥500 Mating Cycles, Durable for Long-Term Use
Environmental Resistance: Anti-Ozone, Anti-Humidity, Anti-Corrosion, Adapt to Harsh Environments
Certifications: RoHS Compliant, Meets EU Environmental Standards
3. Structural Features
Nylon PA66 Housing: High Mechanical Strength, Anti-Impact, Anti-Aging
Gold-Plated Copper Contacts: Low Resistance, Anti-Oxidation, Stable Signal/ Power Transmission
Field Assembly Design: Tool-Free Wiring, Easy On-Site Installation & Maintenance
Locking Thread: Secure Connection, Prevent Loosening During Vibration
Sealing Ring: Reinforced Waterproof Structure, Ensures IP67 Performance After Assembly
4. Application Scope
Widely Used for Industrial Sensors, Automotive Electronics, CNC Machinery, Packaging Equipment, Robotics,
and Other Low-Voltage Industrial Scenarios Requiring Reliable & Waterproof Connections.
5. Customization Options
Custom Pin Count (4/5/8 Pin)
Custom Gender (Male/Female Pair)
Custom Plating (Tinned/Gold Plated Contacts)
Custom Packaging & Branding
