M12 A-Coded Sensor Cable

M12 A-Coded Sensor Cable

Industrial Grade | For Servo Motors/Robots/Automation

Conductor: Tinned Stranded Pure Copper (24AWG, 0.25mm²)

Sheath: PVC (Wear/Oil Resistant)

Temp: -40℃~+80℃

IP Rating: IP67 Waterproof & Dustproof

Voltage: 300V

Current: 5A

Core Count: 3/4/5/6/8 Pin

Certifications: CE, RoHS, REACH

Customizable: Gender/Head Style/Length

1. 1.Basic Specifications

   Product Name: M12 Sensor Cable / M12 Circular Connector Cable / A-Coded Sensor Wire

   Conductor Material: Tinned Stranded Pure Copper (24AWG, 5*0.25mm² Optional)

   Insulation Material: PVC (Wear-Resistant & Oil-Resistant)

   Sheath Material: High-Density PVC (Abrasion-Resistant, Anti-Tear)

   Rated Voltage: 300V (Industrial Grade)

   Working Temperature Range: -40℃ ~ +80℃ (Standard)

   Wire Gauge (AWG/mm²): 24AWG / 0.25mm² Per Core

   Core Count: 3/4/5/6/8 Cores (Customizable for Industrial Equipment)

   Nominal Outer Diameter: Custom (According to Core Count & Gauge)
2. 2.Key Performance Parameters

   Waterproof Rating: IP67 (Dustproof & Waterproof, Adapt to Harsh Industrial Environments)

   Connection Stability: Secure Alloy Socket, Vibration-Resistant, Anti-Loosening

   Environmental Resistance: Anti-Humidity, Anti-Chemical (Oil/Alkali Resistant), Adapt to Industrial Workshop Conditions

   Current-Carrying Capacity: 5A (Depend on Wire Gauge), Stable Power/Signal Transmission

   Insulation Resistance: ≥100MΩ (20℃), Excellent Insulation Performance, Safe for Industrial Use

   Certifications: CE, RoHS, REACH (Compliant with EU/US Import Standards)
3. 3.Structural Features

   Stranded Copper Conductor: Fine Stranding, Stable Conductivity, Not Easy to Break During Bending

   Double Protection: Inner Insulation + Outer PVC Sheath, Strong Anti-Interference, Prevent Short Circuit

   Connector Design: A-Coded Circular Plug, Alloy Housing, Corrosion-Resistant, Easy to Install & Replace

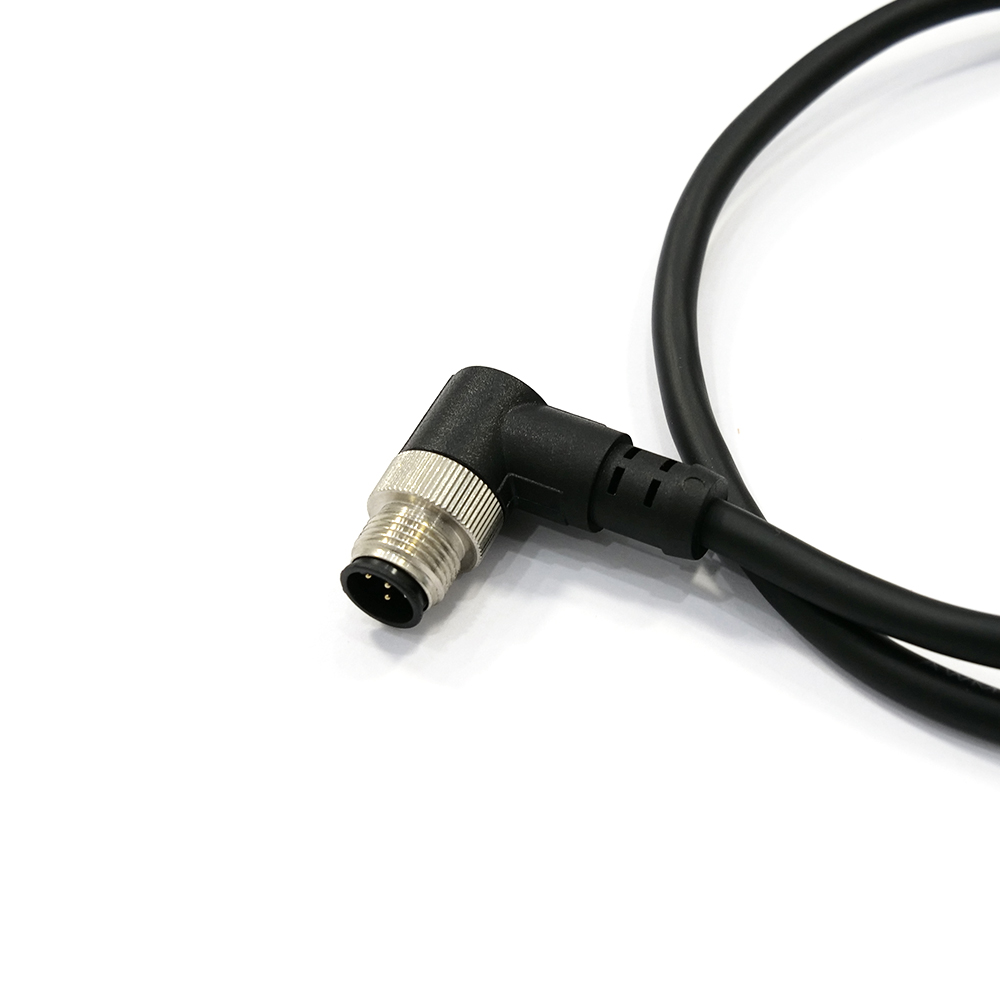

   Optional Head Style: Straight / 90° Angled Connector (Adapt to Different Installation Scenarios)
4. 4.Application Scope

   Widely Used for Servo Motors, Industrial Robots, Automated Production Lines, Control Cabinets, CNC Equipment, Packaging Machinery, and Other Industrial Scenarios Requiring Stable Signal & Power Transmission.
5. 5.Customization Options

   Custom Wire Gauge, Core Count, Outer Diameter

   Custom Connector Gender (Male Plug / Female Socket)

   Custom Length (Per Roll) and Packaging

   Custom Connector Style (Straight/Angled)
