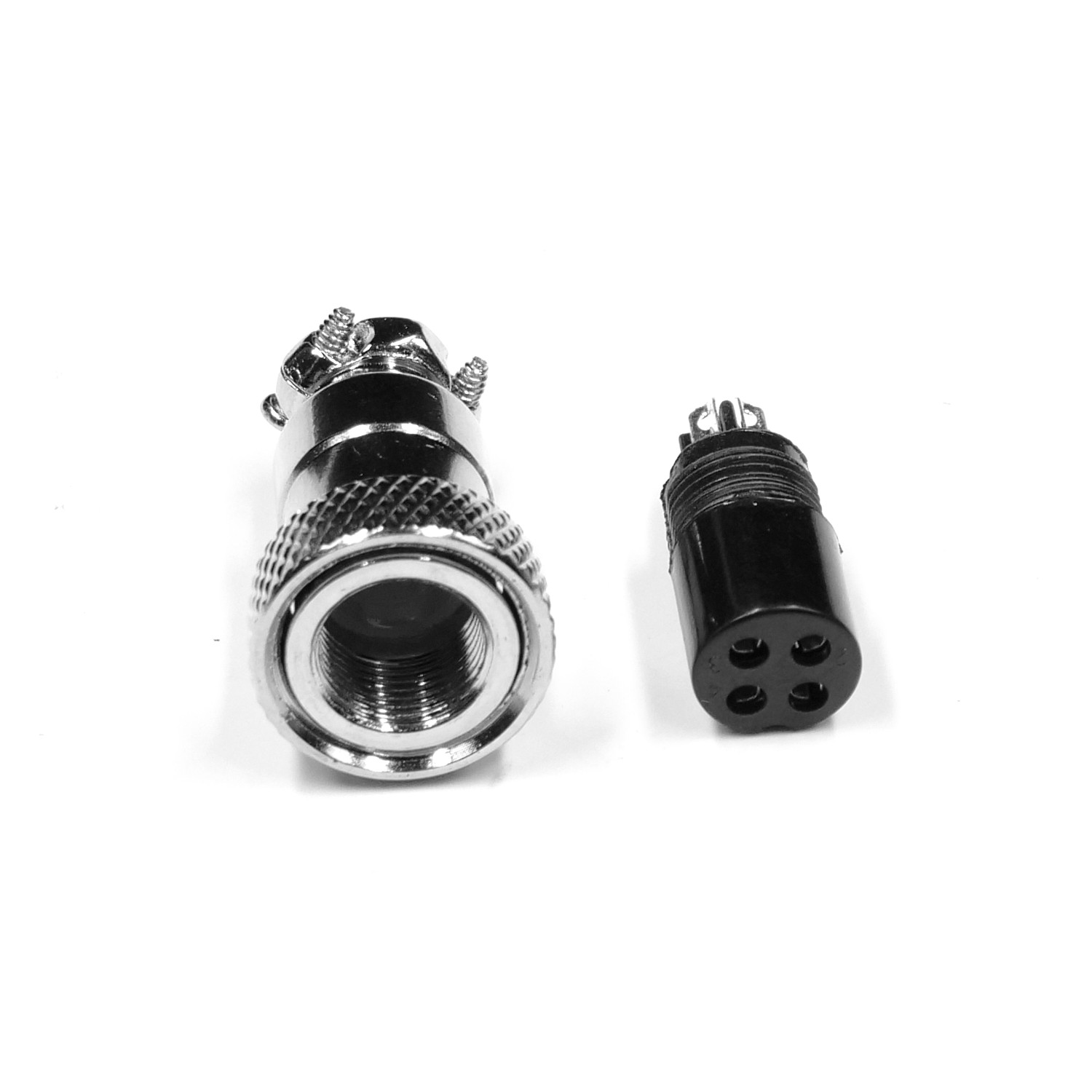

M12 Waterproof PCB Connector
Industrial Grade | For CNC/Robotics/Automotive
Conductor: Tinned Stranded Pure Copper Contacts (Nickel Plated)
Housing: Nickel Plated Metal Shell (Corrosion Resistant)
IP Rating: IP67 Waterproof & Dustproof
Rated: 5A Current, 125V Voltage
Pins: 3/4/5/6/7 Pin Optional
Termination: Screw Terminal (SC Type)
Certifications: CE, RoHS, REACH
Customizable: Pin Count/Gender/PCB Mount Type
M12 Waterproof PCB Connector Specifications
Industrial Grade M12 Connector Specifications, Compliant with International Standards, Suitable for Automation, Robotics, Automotive & Industrial Equipment
1. Basic Specifications
Product Name: M12 Waterproof PCB Connector / Aviation Plug / Circular Connector
Contact Material: Tinned Stranded Pure Copper Contacts (Nickel Plated, 3/4/5/6/7 Pin Optional)
Insulation Material: PBT/PA66 (High Insulation, Heat Resistant)
Housing Material: Nickel Plated Zinc Alloy (Corrosion Resistant, Anti-Rust)
Rated Voltage/Current: 125V, 5A (Industrial Grade)
Working Temperature Range: -25℃ ~ +85℃ (Standard)
Wire Gauge (AWG/mm²): 26AWG / 0.14mm² (Compatible)
Pin Count: 3/4/5/6/7 Pins (Flexible Customization for Equipment)
Nominal Outer Diameter: 12mm (Standard M12 Size)
2. Key Performance Parameters
Waterproof & Dustproof: IP67 Rated, Sealed Against Moisture and Dust (IEC 60529 Standard)
Contact Resistance: ≤10mΩ, Stable Conductivity, Low Signal Loss
Insulation Resistance: ≥1000MΩ (500V DC), Safe for Industrial Use
Mechanical Life: ≥1000 Mating Cycles, Durable for Frequent Connections
Environmental Resistance: Anti-Corrosion, Anti-Oxidation, Adapt to Harsh Industrial Environments
Flame Retardant Grade: UL94 V-0, Meet Industrial Fire Safety Standards
Certifications: CE, RoHS, REACH, Compliant with EU/US Import Standards
3. Structural Features
Nickel Plated Metal Housing: High Hardness, Anti-Scratch, Corrosion Resistant
Screw Terminal Connection: Easy Wiring, Firm Connection, Not Easy to Loosen
PCB Mount Design: Straight PCB Mount, Ideal for Circuit Board Installation
Male/Female Versions: Complete Set for Male Plug & Female Socket, Easy to Match
Compact Size: Standard M12 Size, Suitable for Space-Limited Industrial Equipment
4. Application Scope
Widely Used for Industrial Automation Equipment, CNC Machine Tools, Industrial Robots, Automotive Systems, Sensors,
Measuring Instruments, and Other Industrial Scenarios Requiring Waterproof, Stable and Reliable Electrical Connections.
5. Customization OptionsC
ustom Pin Count (3/4/5/6/7 Pins)
Custom Gender (Male/Female/Set)
Custom Mount Type (PCB Straight/Panel Mount)
Custom Insulation Material (High-Temp Resistant Optional)
Custom Packaging (Bulk/Blister Pack)
