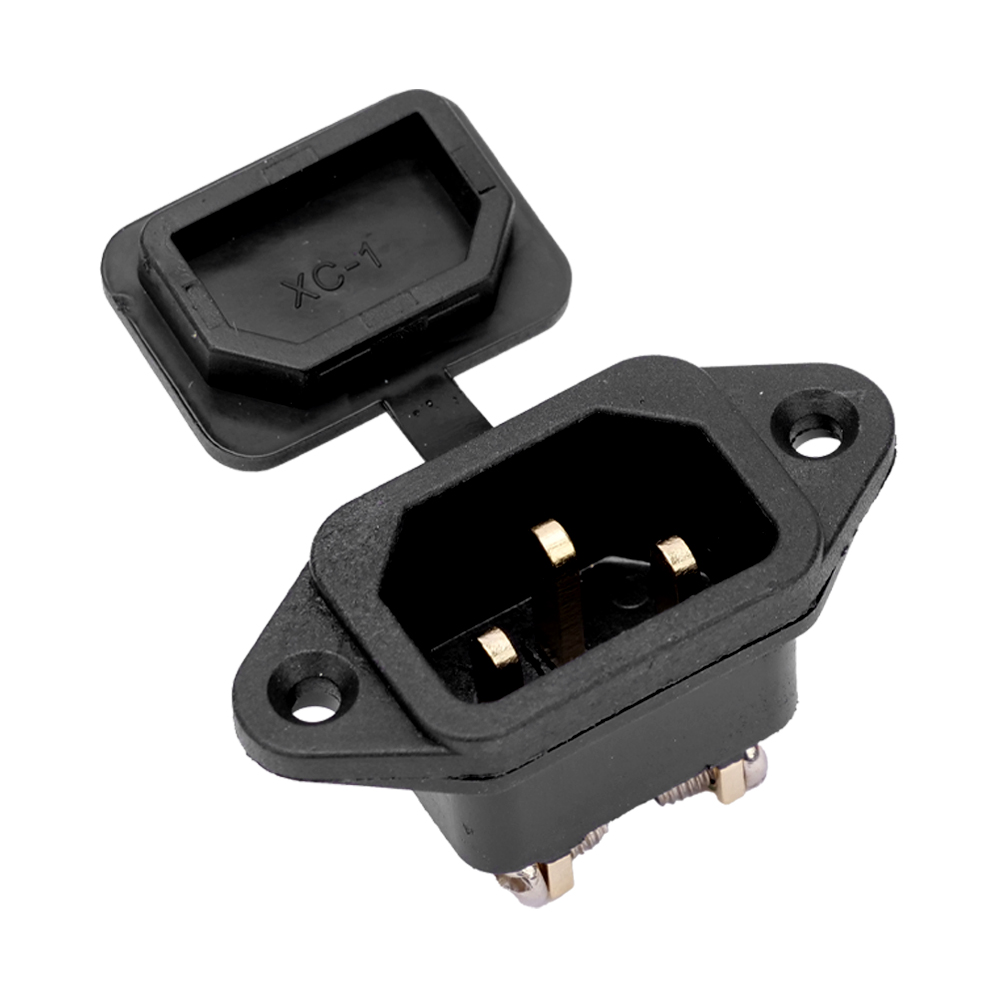

IEC C14 Inlet Power Socket
Industrial & Household Grade | PC / Microwave / Audio Equipment
Conductor: Brass Gold-Plated Terminal Pins
Housing: Flame Retardant Nylon Plastic (UL94 V-0)
Temp: -20℃~+70℃
Current & Voltage: 10A 250V AC
Mounting: Screw Flange Fixed Installation
Certifications: UL, CE, CQC, RoHS, REACH
Customizable: Dust Cover / Soldering Terminal / Wiring Terminal
IEC C14 Inlet Power Socket Specifications
Household & Industrial Grade C14 power inlet socket, compliant with global IEC safety standards, suitable for computers, kitchen appliances, audio devices and automation equipment
1. Basic Specifications
Product Name: IEC C14 Power Inlet Socket / 3 Pin Equipment Input SocketConductor Material: High conductivity brass pins with gold platingHousing Material: Flame retardant PBT / Nylon plastic (UL94 V-0 fire resistant)Rated Voltage & Current: Standard 10A 250V AC; Optional 15A 250V ACWorking Temperature Range: -20℃ ~ +70℃Mounting Hole Size: Standard 35mm × 19mm flange cutoutPin Layout: 3P (Live L / Neutral N / Ground G)Installation Style: Dual ear screw flange panel mounting
2. Key Performance Parameters
Connection Durability: 1000+ times plug-unplug cycles without loose contactContact Resistance: ≤50mΩ, stable power transmissionInsulation Resistance: ≥1000MΩ (20℃)Withstand Voltage: 2000V AC 1 minute, no breakdownEnvironmental Resistance: Anti-humidity, anti-oxidation, stable for indoor equipment useCertifications: UL, CE, CQC, RoHS, REACH
3. Structural Features
- Gold-plated brass terminals, low resistance, anti-rust and long service life
- Flame retardant nylon shell, high temperature resistant, safe for high power devices
- Two fixing lugs with screw holes, quick lock installation on device chassis
- Optional integrated dust cover to shield pin terminals when idle
- Two wiring options: screw lock terminal or PCB soldering pin
- Optional EMI shielding structure for precision industrial equipment
4. Application Scope
Widely applied for desktop computers, monitors, microwave ovens, electric kettles, refrigerators, washing machines, audio amplifiers, printers, projectors, small industrial power supplies, medical instruments and all devices with IEC C13 power cord matching interface.
5. Customization Options
Custom terminal type (screw wiring / PCB solder pin)Custom with/without protective dust coverCustom plating thickness for contact pinsCustom package quantity per bag/boxCustom logo printing on plastic housing
