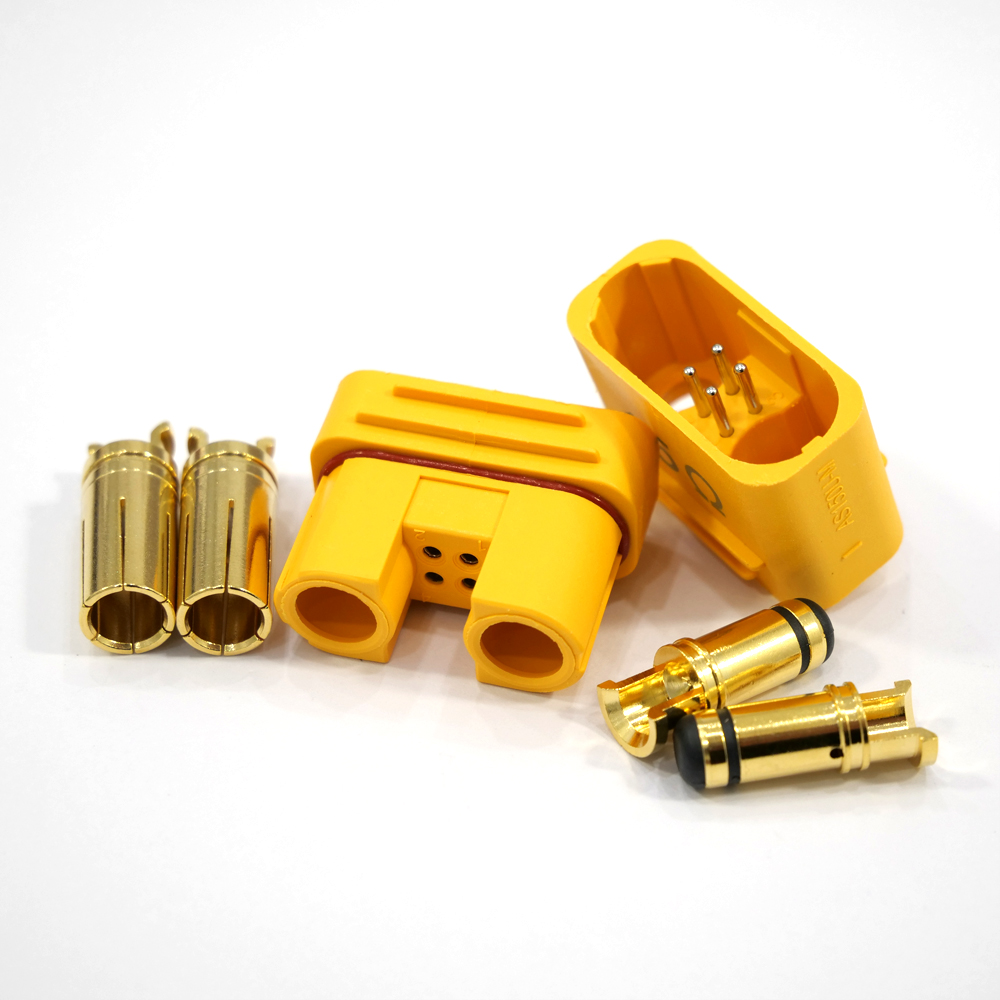

AS150U High-Current Anti-Spark Connector
Industrial Grade | For RC Models/E-Scooters/Drones/Energy Storage
Conductor: Gold-Plated Copper (Low Contact Resistance)
Sheath: PA66 Nylon (Wear/Oil Resistant, UL94-V0)
Temp: -20°C~+120°C
Current: 70A Continuous / 120A Peak
Voltage: 500V DC
Contact Resistance: ≤0.20mΩ
Certifications: CE, RoHS, REACH
Customizable: Polarity/Color/Packaging
AS150U High-Current Anti-Spark Connector SpecificationsIndustrial Grade Connector, Compliant with International Standards, Suitable for RC Models, E-Scooters, Drones & Energy Storage Equipment
Basic SpecificationsProduct Name: AS150U High-Current Anti-Spark Connector
Conductor Material: Gold-Plated Copper (High Conductivity, Low Contact Resistance)
Insulation Material: High-Temperature Resistant Engineering Plastic (PA66 Base)
Sheath Material: PA66 Nylon (Impact-Resistant, Oil-Resistant, Anti-Aging)
Rated Current: 70A (Continuous), 120A (Peak)
Rated Voltage: 500V / DC
Working Temperature Range: -20°C ~ 120°C (Standard)
Contact Resistance: ≤0.20mΩ
Nominal Outer Diameter: Standard Size (Matched to QS Series Interface)
Key Performance ParametersBending Resistance: Durable Mechanical Connection, Repeated Plugging Cycles ≥1000 Times
Wear Resistance: PA66 Sheath with High Hardness, Anti-Scratch, Suitable for Frequent Mating
Environmental Resistance: Anti-Ozone, Anti-Humidity, Anti-Chemical Corrosion, Adapt to Harsh Industrial Environments
Current-Carrying Capacity: Stable 70A Continuous Load, No Overheating Under Full Load
Insulation Resistance: ≥1000MΩ (20°C), Excellent Insulation Performance, Safe for High-Voltage DC Use
Flame Retardant Grade: UL94-V0 Flame Retardant, Meet Fire Safety Standards
Certifications: CE, RoHS, REACH, Compliant with EU/US Import Standards
Structural Features
Gold-Plated Copper Conductor: Low Contact Resistance, Stable Power Transmission, Not Easy to Oxidize
Anti-Spark Structure: Built-In Protection Design, Eliminate Spark Risk During Connection
PA66 Sheath Design: Smooth Surface, Anti-Impact, Anti-Interference, Prevent Short Circuit
Optional Customization: Pin Configuration, Color Coding, and Packaging Customization Available
Application ScopeWidely Used for Electric Motorcycles, E-Scooters, Energy Storage Lithium Batteries, Industrial Drones, RC Models, and Other Scenarios Requiring High-Current, Anti-Spark, and Stable DC Power Transmission.
Customization OptionsCustom Pin Configuration & Polarity
Custom Sheath Color (Yellow/Black/Red Optional)
High-Temperature/Low-Temperature Customization (Extended Temp Range Available)
Custom Packaging (Bulk/Blister Pack) and Length Options
