2+4 Power Signal Connector
Industrial Grade | For Energy Storage / Automation / Power Equipment
Connector Type: 2+4 Male & Female Pair
Conductor: Copper Pins
Housing: PA Plastic Insulation
Rated Current: 40A
Rated Voltage: DC 500V
Pin Layout: 2 Power Pins + 4 Signal Pins, Total 6 Cores
Structure: Panel Mount Male & Female Matching Set
Application: Battery, Industrial Equipment, Power Signal Integration
Customizable: Pin Plating, Wire Harness Assembly, Packaging
2+4 Power Signal Connector Specifications
Industrial Grade 2+4 Pin Male Female Connector Specifications, Compliant with Industrial DC Equipment Standards, Suitable for Energy Storage, Automation Equipment, Power Battery Connection
1. Basic Specifications
Product Name: 2+4 Connector / 2+4 Pin Power Signal Connector
Connector Type: 2+4 Female Socket & 2+4 Male Plug
Conductor Material: Copper
Housing Material: PA Plastic
Rated Current: 40A
Rated Voltage: DC 500V
Total Number of Cores: 6 cores
Power Pins: 2 cores (High Current Power Transmission)
Signal Pins: 4 cores (Signal Data Transmission)
2. Key Performance Parameters
Current Load Capacity: Stable 40A rated current, low resistance for continuous power output
Voltage Withstand Performance: DC 500V rated voltage, safe isolation between power and signal pins
Structure Stability: Integrated PA housing, anti-loose mounting holes for fixed panel installation
Pin Separation Design: Independent separation of power pins and signal pins, avoid signal interference
3. Structural Features
Copper Conductive Pins: Good electrical conductivity, stable power and signal transmission
PA Insulation Housing: Excellent insulation performance, anti-aging, impact resistant
Separate Power & Signal Layout: 2 large power pins + 4 small signal pins, realize power supply and signal transmission at the same time
Panel Mount Design: Reserved mounting holes, convenient to fix on equipment shell
Complete Male & Female Matching: Male plug and female socket complete docking set
4. Application Scope

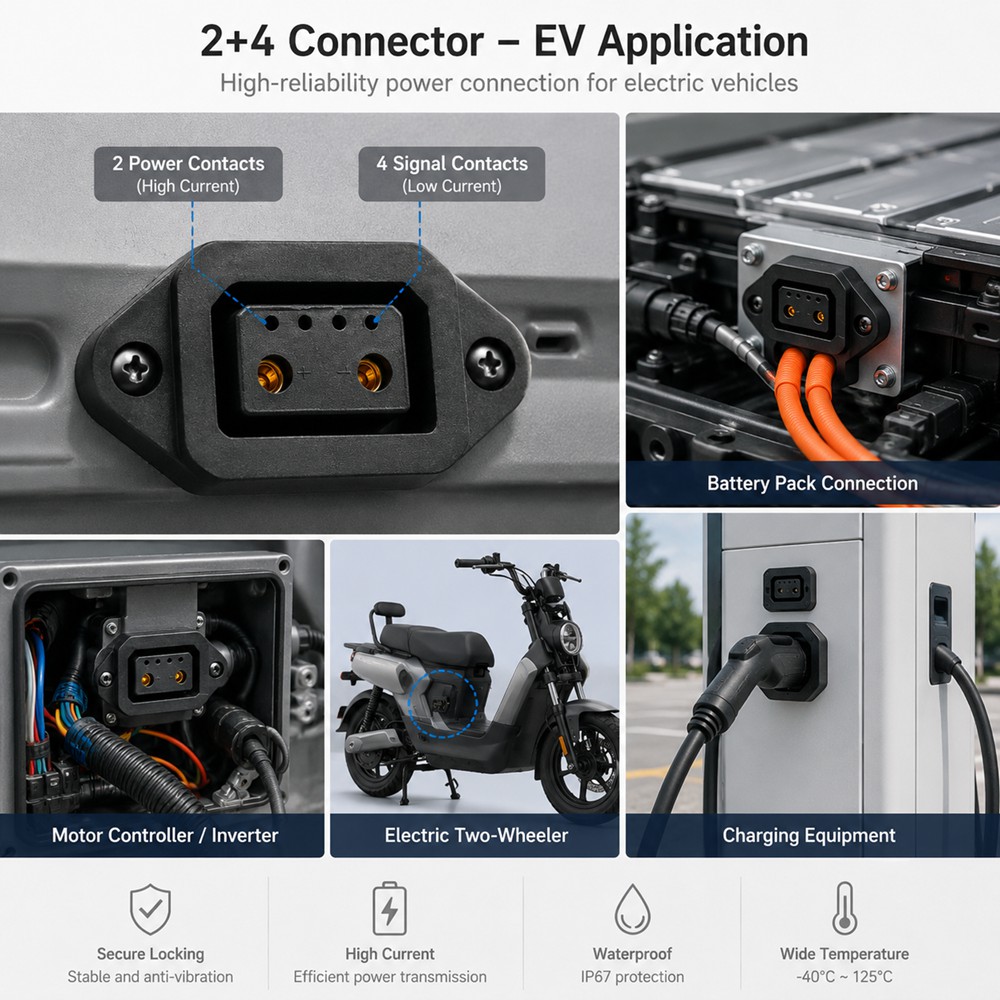

Widely used for energy storage batteries, industrial automation devices, power supply equipment, new energy equipment, testing instruments, and other equipment that need simultaneous high-current power supply and signal transmission.
5. Customization Options
Custom pin surface treatment (gold-plated / silver-plated copper pins)
Custom assembly wire harness with specified wire gauge
Custom overall size and pin length on demand
Custom packaging quantity per carton
