2+4 Connector High-Current Anti-Spark Connector
Industrial Grade | For Electric Vehicles, Energy Storage and Industrial Drones
Conductor: Nickel-Plated Copper
Sheath: PA66 with UL94-V0 Flame Retardant Rating
Temperature Range: -20°C to 120°C
Anti-Spark Feature: Built-in Spark Protection for Safe Connections
Rated Voltage: 500V DC
Rated Current: 30A
Contact Resistance: 0.51mΩ Max
Customizable: Pin Layout, Mounting Style and Packaging
High-Current Anti-Spark Connector (2+4 Connector) SpecificationsIndustrial Grade High-Current Anti-Spark Connector Specifications, Suitable for Electric Motorcycles, Electric Vehicles, Energy Storage Lithium Batteries and Industrial Drones.
Basic Specifications
Product Name:
2+4 ConnectorConductor Material:
Nickel-Plated CopperSheath Material:
PA66Rated Voltage:
500V DCRated Current:
30ARated Temperature Range:
-20°C to 120°CCore Count:
2+4 Pin ConfigurationKey Performance Parameters
Contact Resistance:
0.51mΩ MaxFlame Retardant Grade:
UL94-V0Environmental Resistance: Anti-Corrosion, Anti-Oxidation, Adaptable to Harsh Working Conditions
Current-Carrying Capacity:
30A Continuous Current for Stable Power Transmission
Safety Performance: Built-in
Anti-Spark Design to Prevent Sparks During Connection and Disconnection
Structural Features

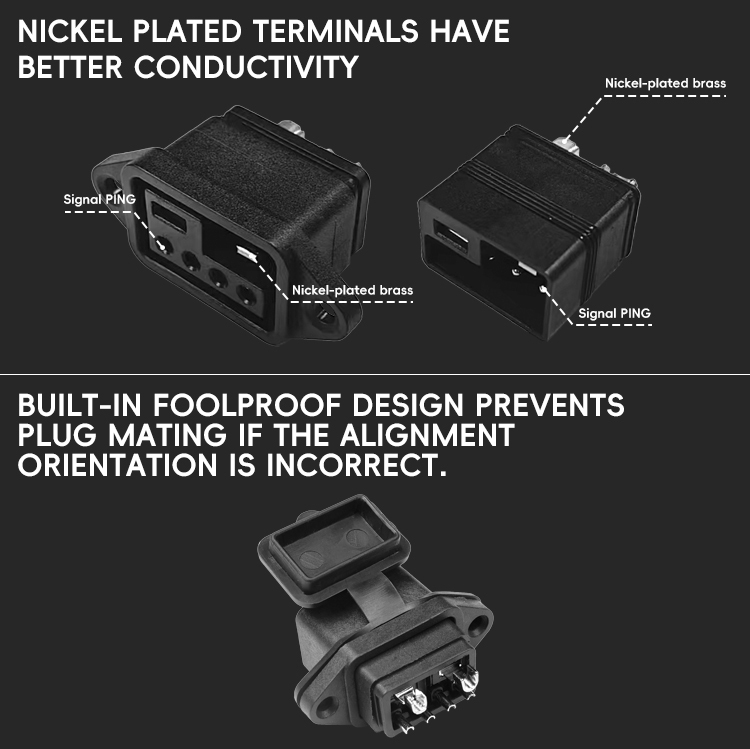

Nickel-Plated Copper Conductor: Ensures low contact resistance and reliable conductivity
PA66 Sheath Housing: High mechanical strength, impact-resistant and flame-retardant
2+4 Pin Layout: Integrated power and signal transmission in a single connector
Panel-Mount Design: Easy installation and secure connection for equipment
Application Scope
Widely used in electric motorcycles, electric vehicles, energy storage lithium batteries, industrial drones and other new energy equipment requiring high-current, safe and stable power transmission.
Customization Options
Custom pin configuration, custom mounting style, custom contact plating options, and custom packaging solutions are available to meet different industrial application needs.
